Circuit Inspection

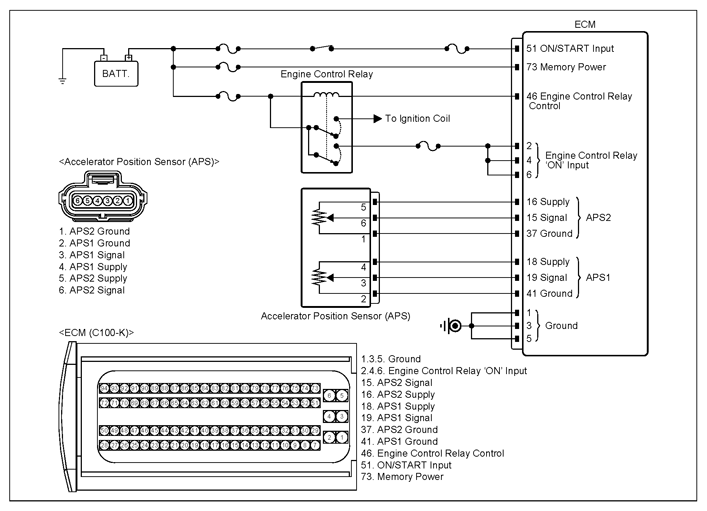

G13355296

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	APS connector	4 (APS1 supply)	Chassis ground	-	Approx. 5V
	APS connector	5 (APS2 supply)	Chassis ground	-	Approx. 5V
Ignition "OFF". Disconnect the auxiliary battery (-) terminal. Disconnect the electrical connector(s) from the concerned component.	APS connector	3 (APS1 signal)	ECM connector	19 (APS1 signal)	Approx. below 1Ω
	APS connector	6 (APS2 signal)	ECM connector	15 (APS2 signal)	Approx. below 1Ω
	APS connector	2 (APS1 ground)	ECM connector	41 (APS1 ground)	Approx. below 1Ω
	APS connector	1 (APS2 ground)	ECM connector	37 (APS2 ground)	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
