Restraints
>>
Air Bag, SRS
>>
Supplemental Restraint System Control Module (SRSCM) And Sensors (PHEV)
>>
Occupant Detecting System (ODS)
>>
Schematic Diagrams
>>
Occupant Detection System (ODS) Unit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

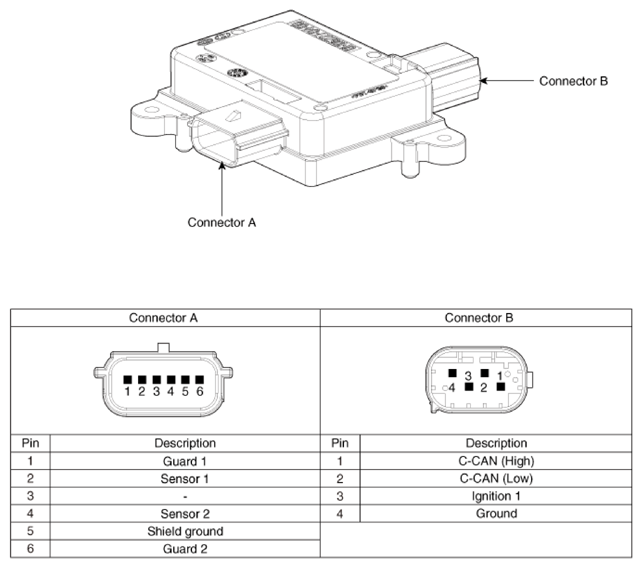

Occupant Detection System (ODS) Unit
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
