Repair Procedures: Installation

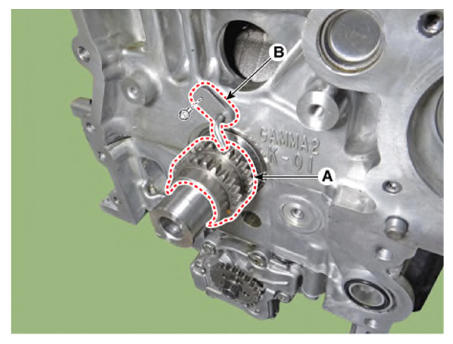

Install the crankshaft sprocket (A) and timing chain oil jet (B).
Tightening torque:

7.8-11.8 N.m (0.8- 1.2 kgf.m, 5.8-8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

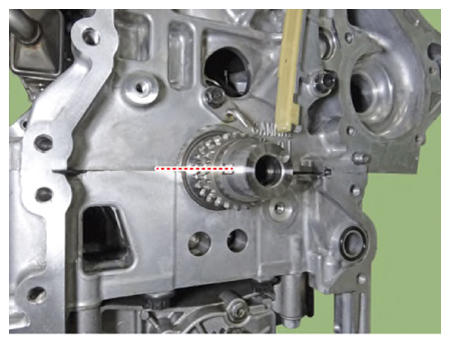

Place the crankshaft key at the left 180°.

Courtesy of KIA MOTORS AMERICA, INC.
Install the oil pump chain.
(Refer to Lubrication System - "OIL PUMP ")

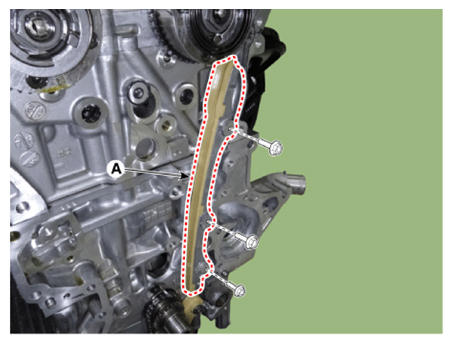

Install the timing chain guide (A).
Tightening torque:

9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

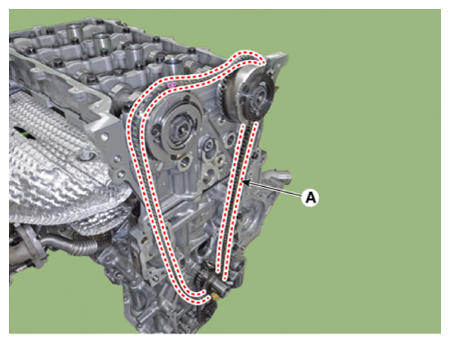

Install the timing chain (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

When installing a timing chain, align the timing marks on the sprockets with the timing marks (color links) of the chain.

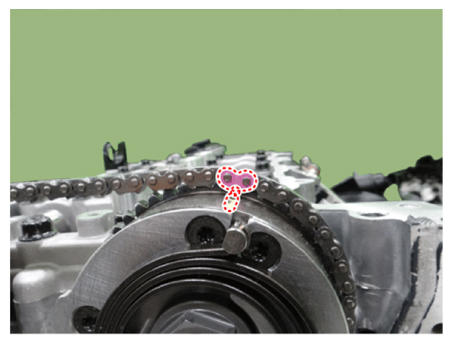

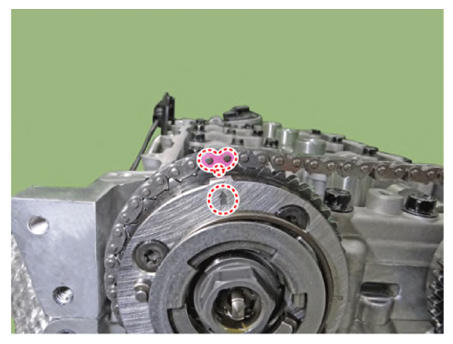

[Intake CVVT timing mark]

Courtesy of KIA MOTORS AMERICA, INC.

[Exhaust CVVT timing mark]

Courtesy of KIA MOTORS AMERICA, INC.

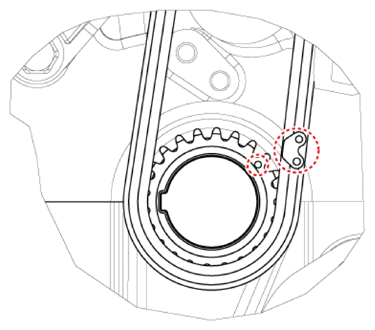

[Crankshaft sprocket timing mark]

Courtesy of KIA MOTORS AMERICA, INC.

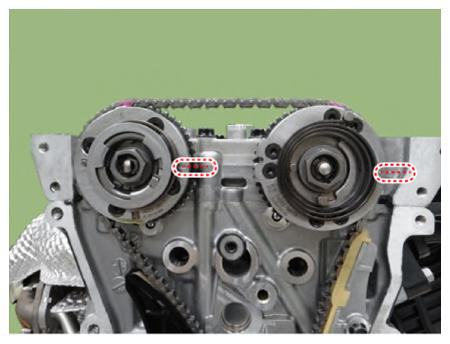

Check if the TDC mark at the front of intake and exhaust CVVT on right side 0° when the installation of timing chain.

Courtesy of KIA MOTORS AMERICA, INC.

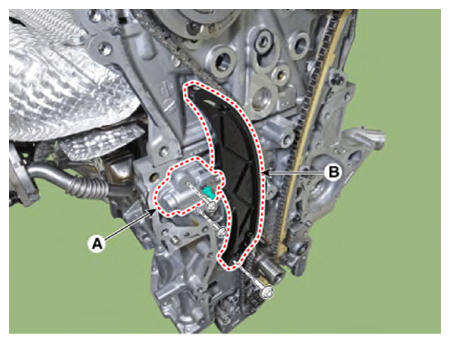

Install the timing chain tensioner arm (B) and then install the timing chain tensioner (A).

Tightening torque:

9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Remove the fixing pin (A) after install the timing chain tensioner.

Courtesy of KIA MOTORS AMERICA, INC.

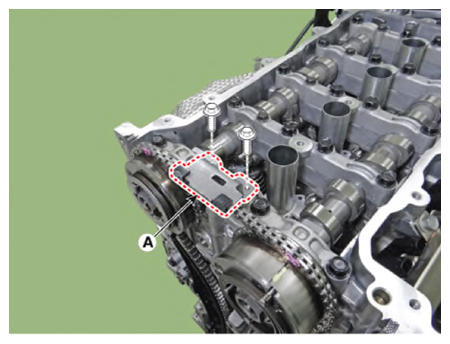

Install the cam to cam guide (A).
Tightening torque:

9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Check if the TDC mark at the front of intake and exhaust CVVT on right side 0° by turning crankshaft twice to clockwise.

Courtesy of KIA MOTORS AMERICA, INC.
Install the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
Install the other parts in the reverse order of removal.
