Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 5

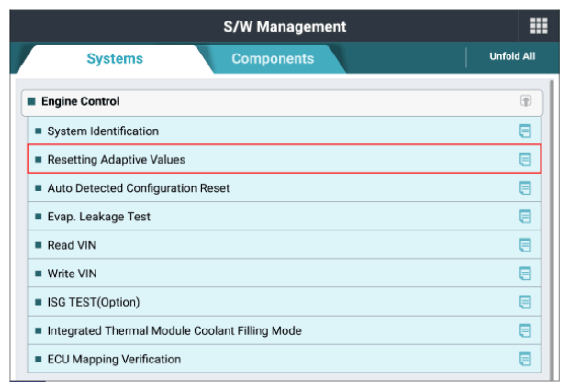

G13708352Courtesy of KIA MOTORS AMERICA, INC.

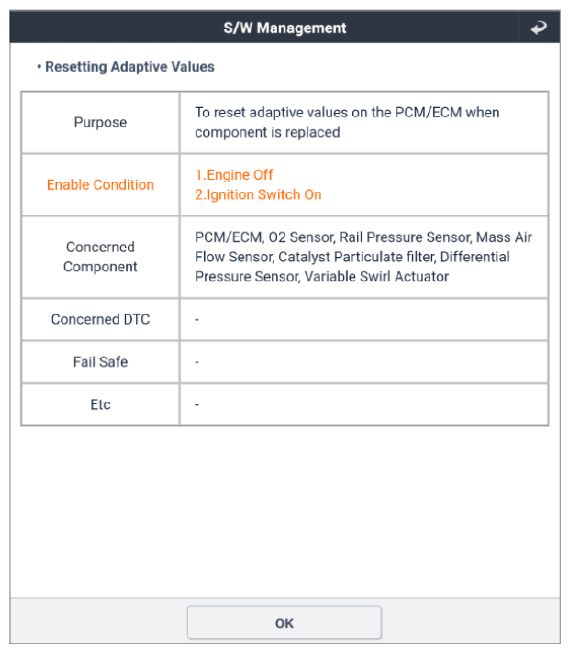

G13708353Courtesy of KIA MOTORS AMERICA, INC.

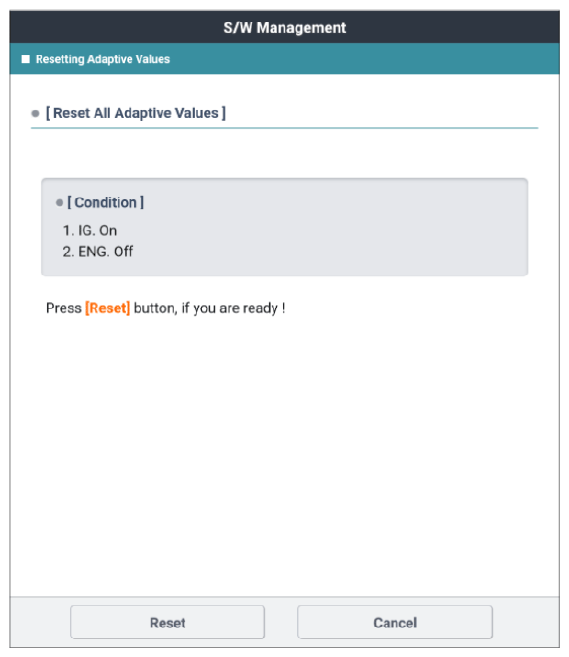

G13708354Courtesy of KIA MOTORS AMERICA, INC.
G13708355Courtesy of KIA MOTORS AMERICA, INC.
G13708356Courtesy of KIA MOTORS AMERICA, INC.
