Repair Procedures: Replacement
- Remove the front seat belt upper anchor.
(Refer to Front Seat Belt - "FRONT SEAT BELT RETRACTOR ")

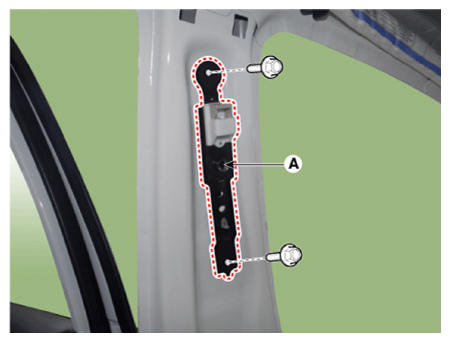

- After loosening the mounting bolts, then remove the height adjust (A).
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)
- Install in the reverse order of removal.
Information
Replace any damaged clips.
