Variant Coding

Is DTC status displayed as Present?

YES

If no problems were found with the circuits or connectors, replace the HECU. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

CAUTION: In case of replacing HECU, perform following procedures.

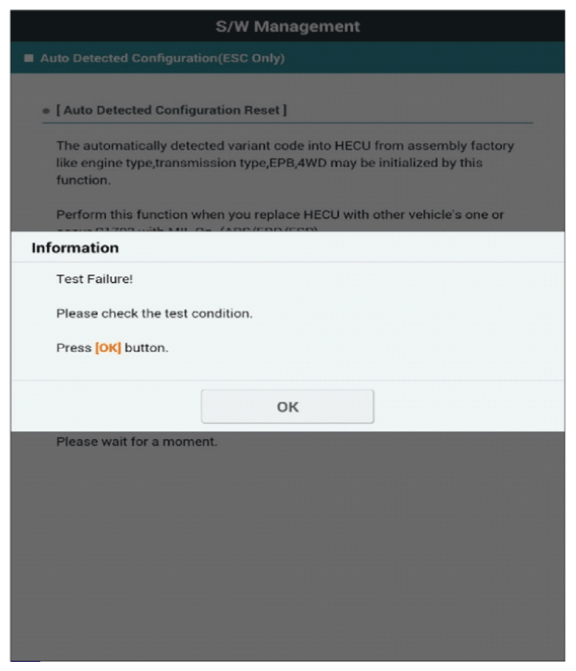

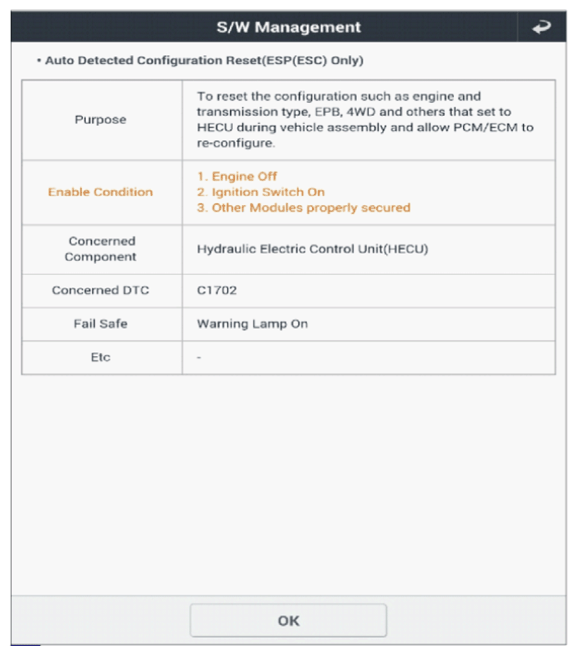

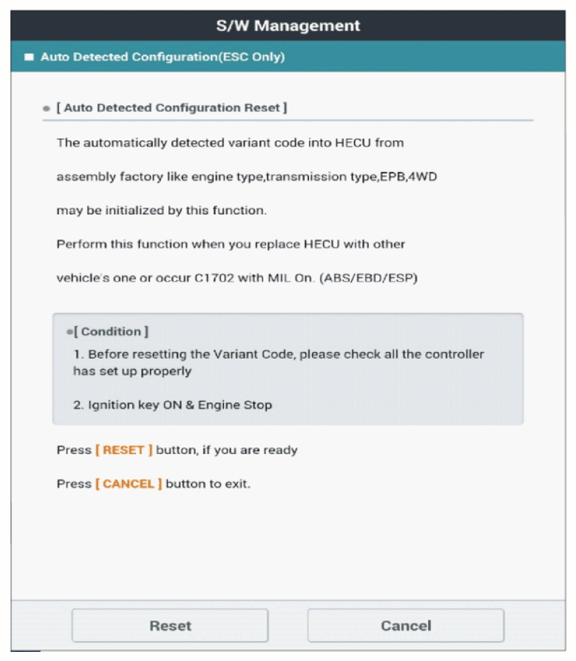

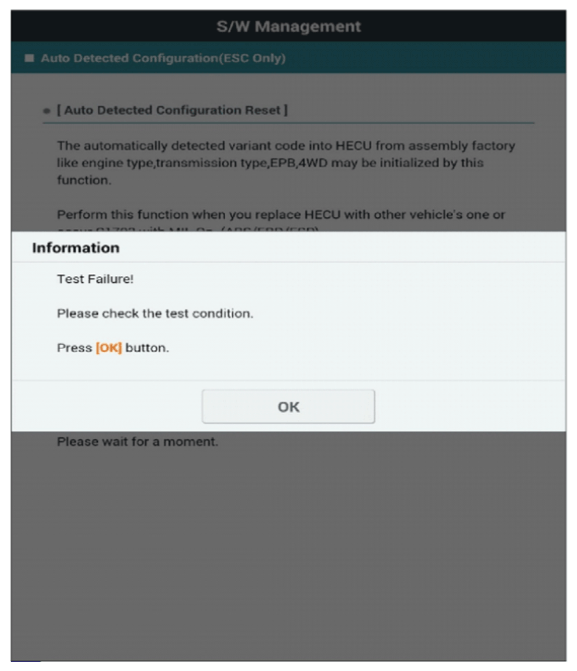

Perform "Auto Detected Configuration Reset (ESP (ESC) Only)" for Variant Coding.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

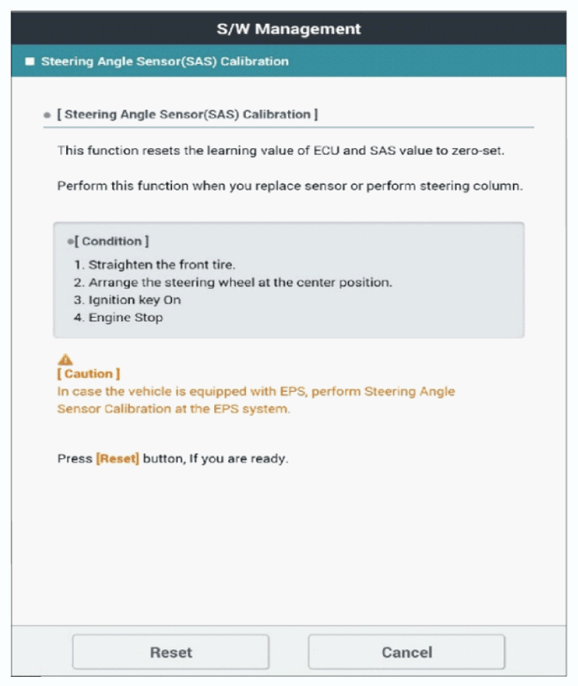

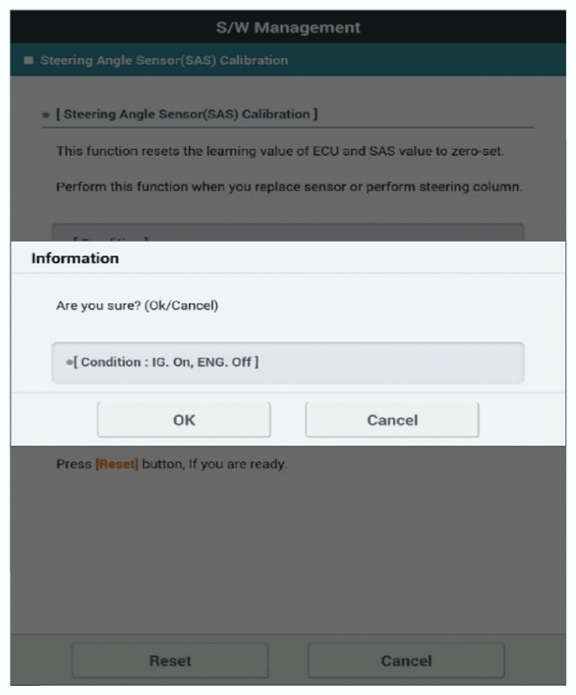

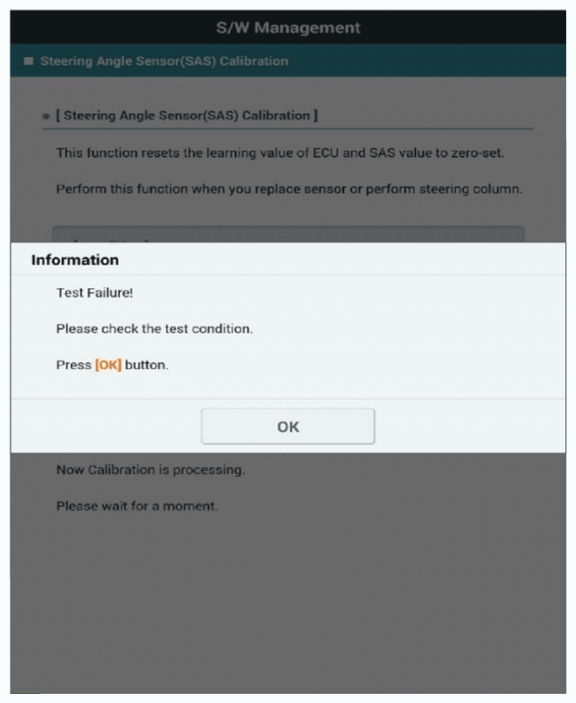

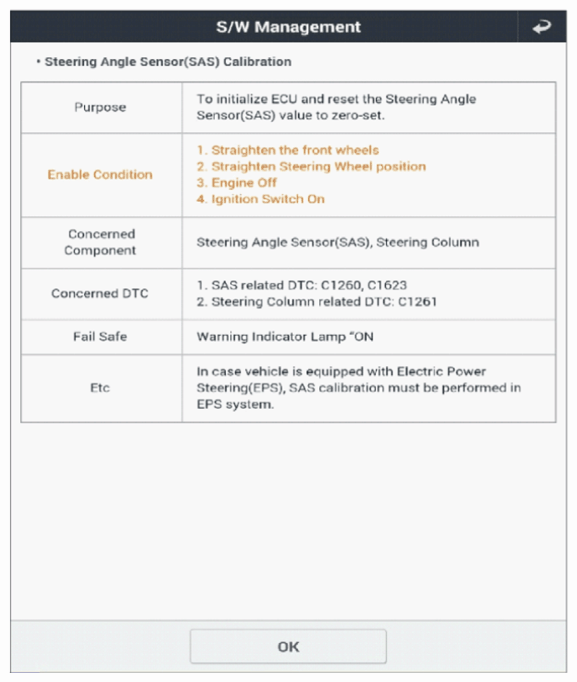

Perform "STEERING ANGLE SENSOR CALIBRATION " for steering angle sensor.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

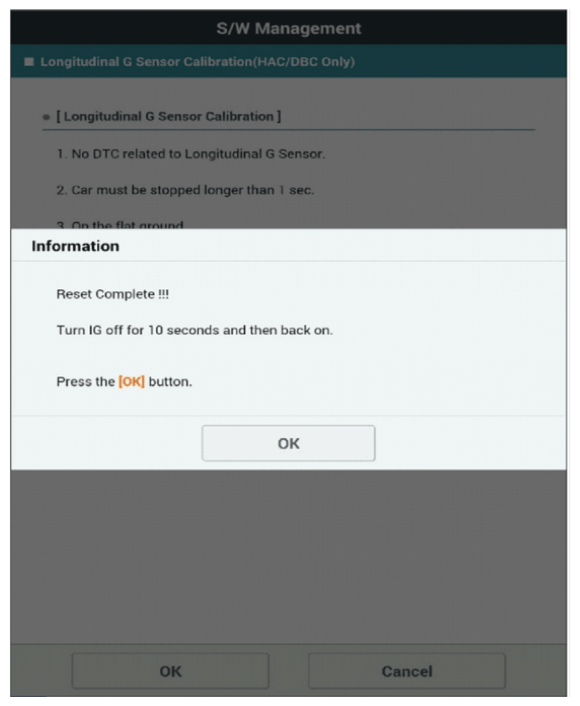

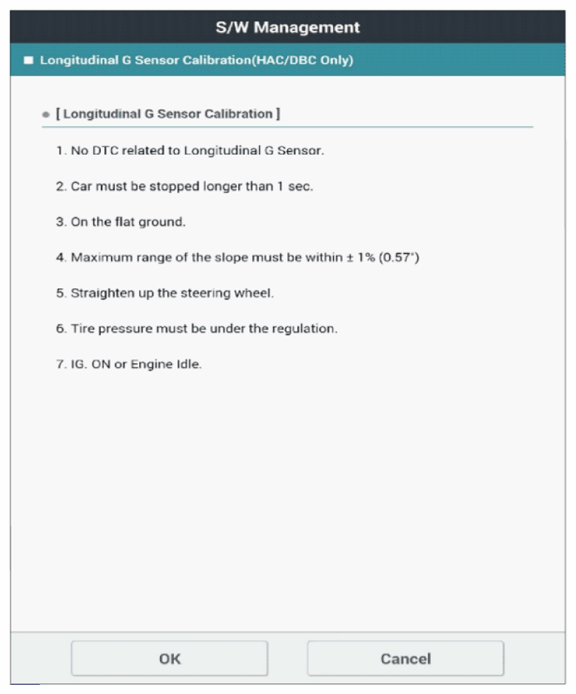

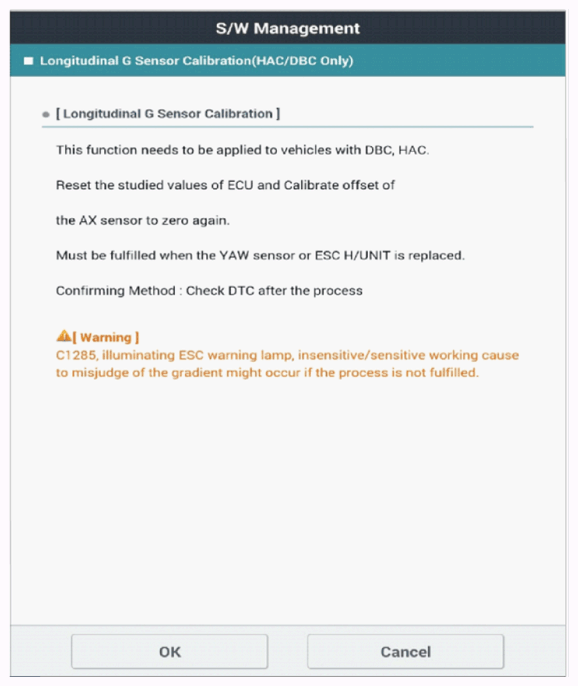

"Longitudinal G-Sensor Calibration (HAC/DBC Only)" for longitudinal sensor offset correction.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

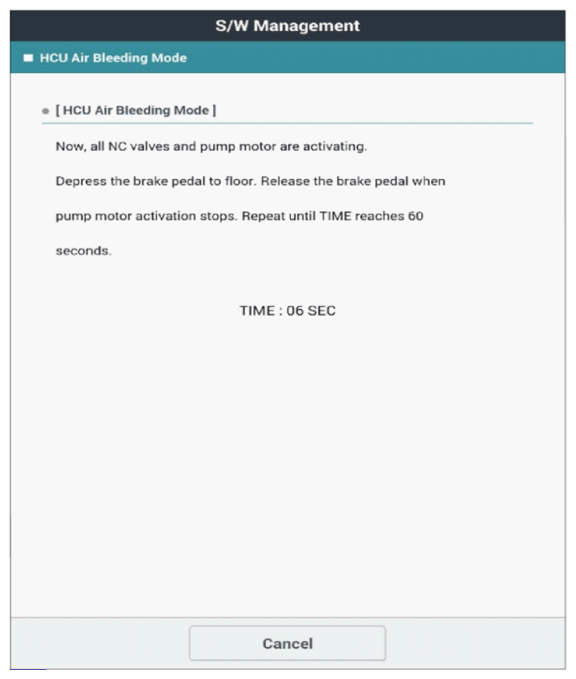

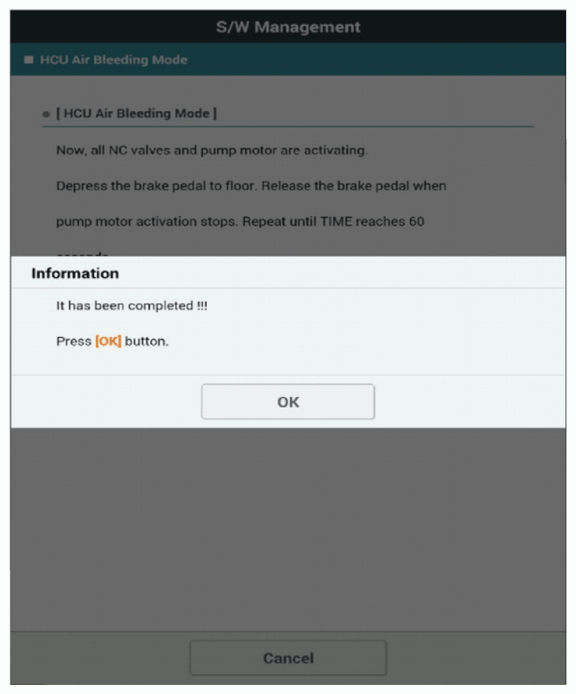

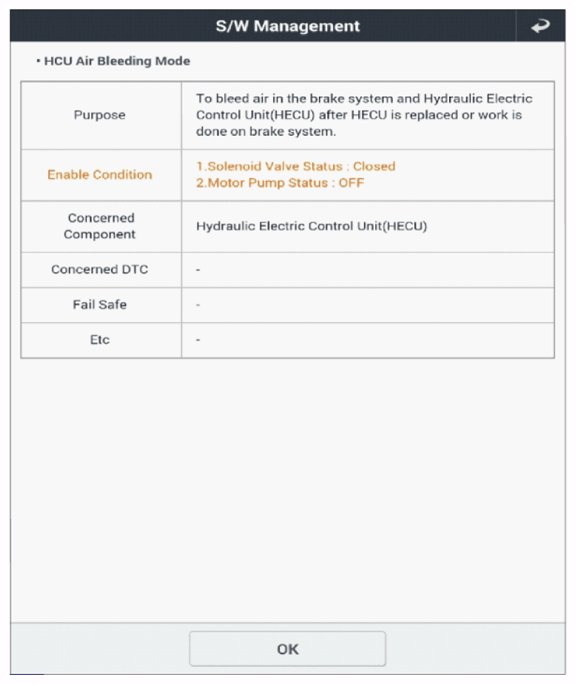

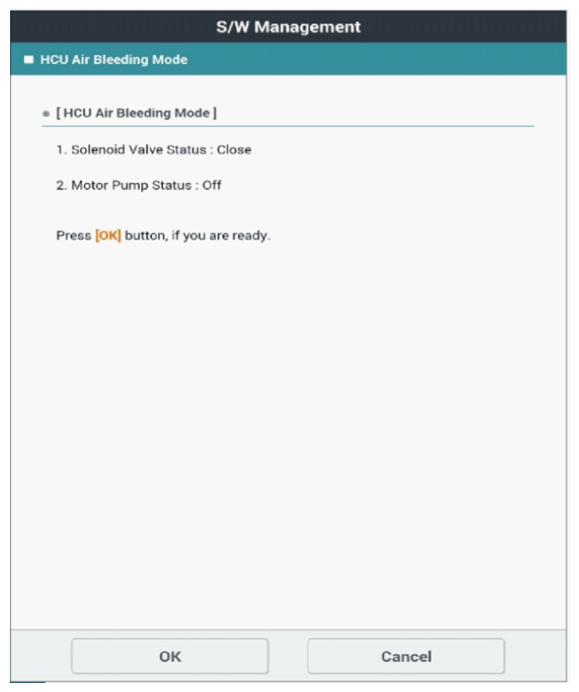

"HCU Air Bleeding Mode" for removing air in the HECU.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
