Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics Backup & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Figures 1 to 9 below

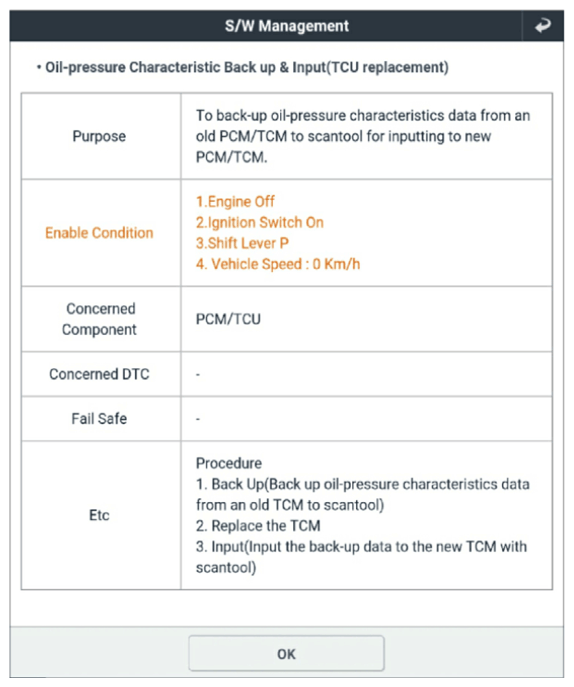

G13043030Courtesy of KIA MOTORS AMERICA, INC.

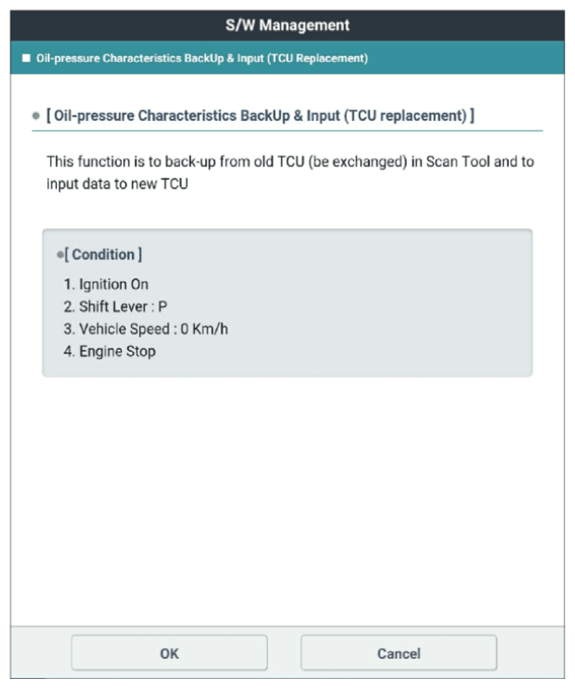

G13043031Courtesy of KIA MOTORS AMERICA, INC.

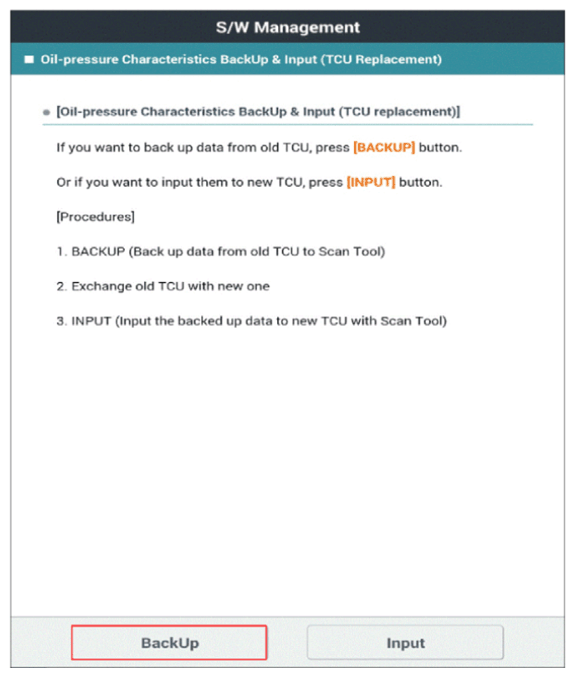

G13043032Courtesy of KIA MOTORS AMERICA, INC.

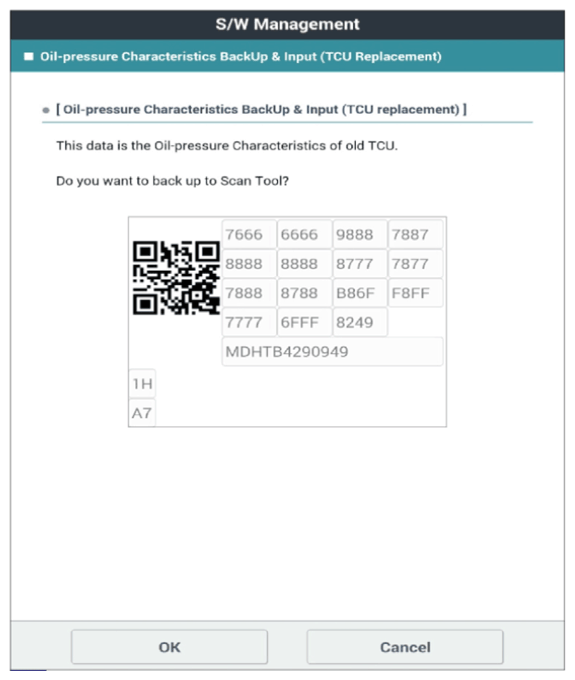

G13043033Courtesy of KIA MOTORS AMERICA, INC.

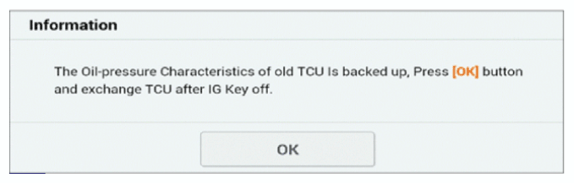

G13043034Courtesy of KIA MOTORS AMERICA, INC.

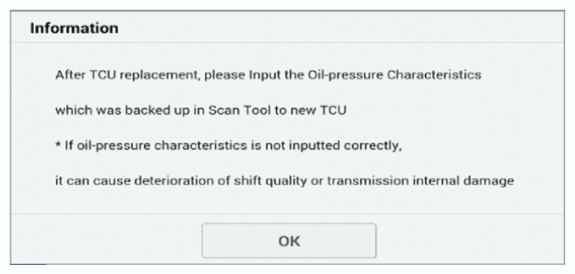

G13043035Courtesy of KIA MOTORS AMERICA, INC.

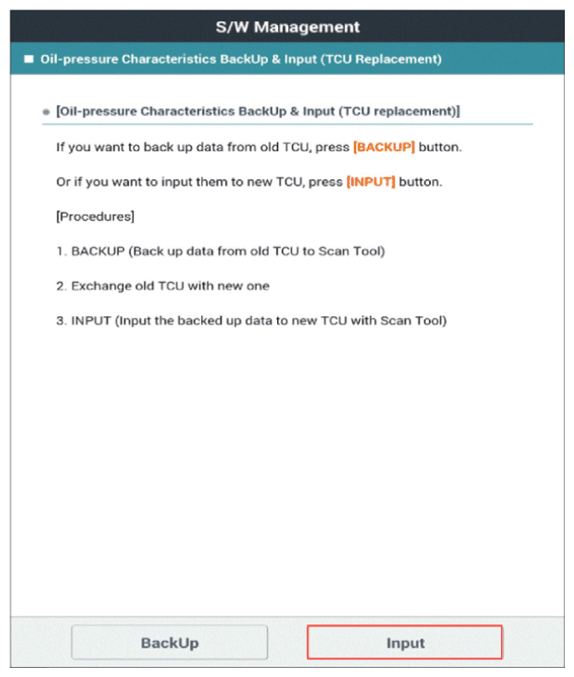

G13043036Courtesy of KIA MOTORS AMERICA, INC.

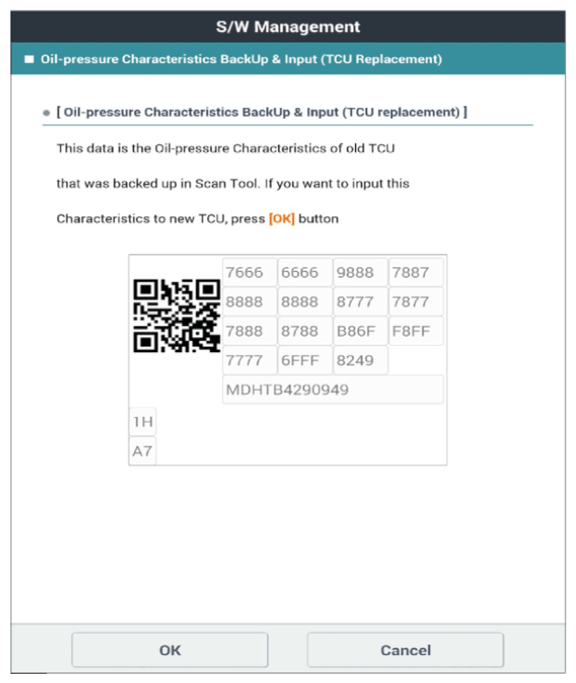

G13043037Courtesy of KIA MOTORS AMERICA, INC.

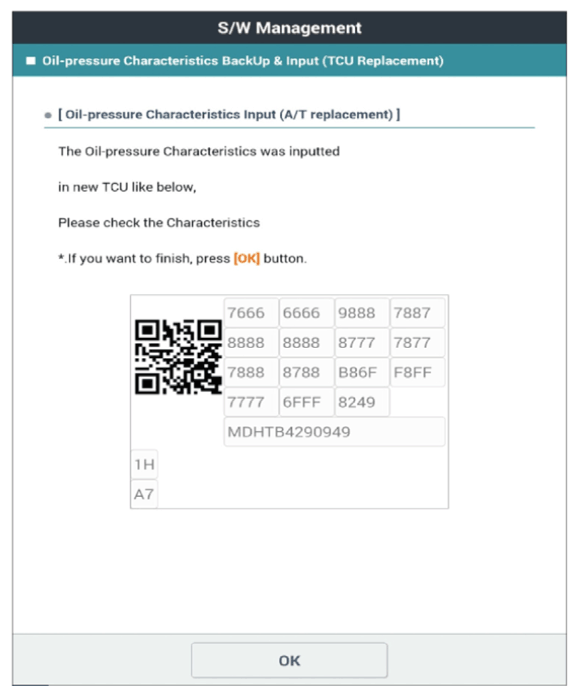

G13043038Courtesy of KIA MOTORS AMERICA, INC.
