Neutralization Status Check

Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

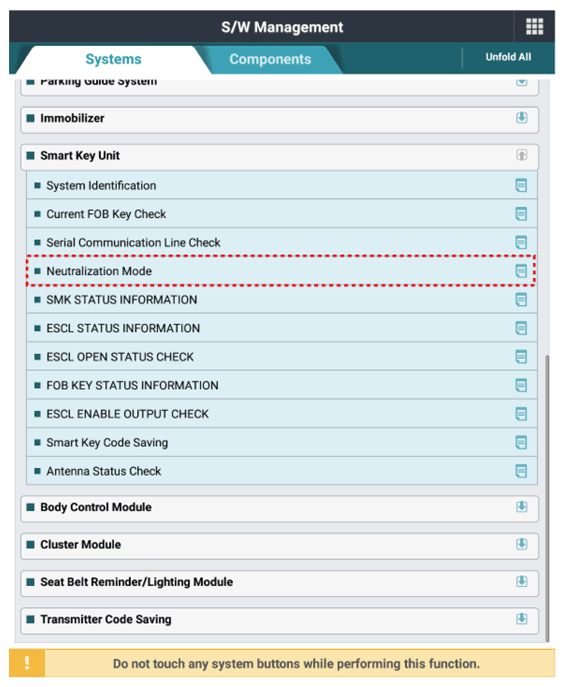

G13047467

Courtesy of KIA MOTORS AMERICA, INC.

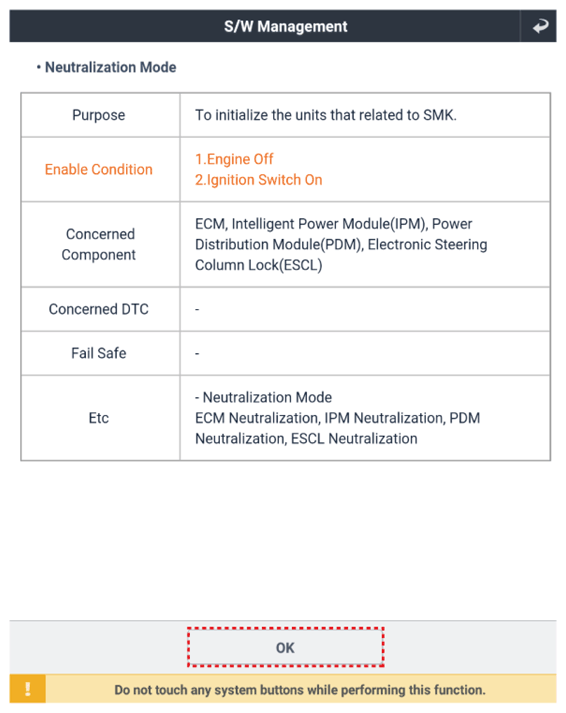

G13047468

Courtesy of KIA MOTORS AMERICA, INC.

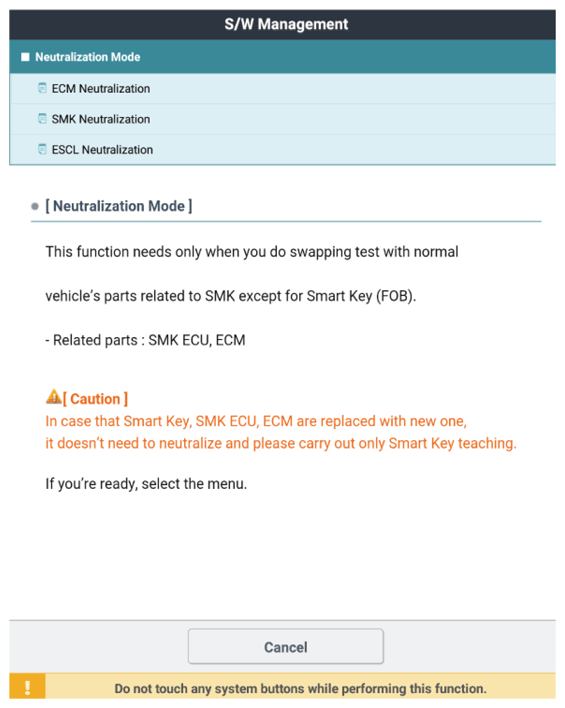

G13047469

Courtesy of KIA MOTORS AMERICA, INC.

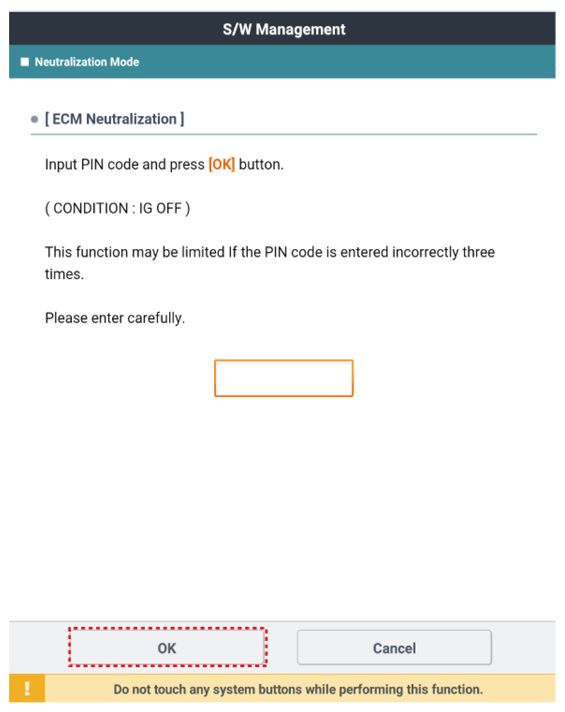

G13047470

Courtesy of KIA MOTORS AMERICA, INC.

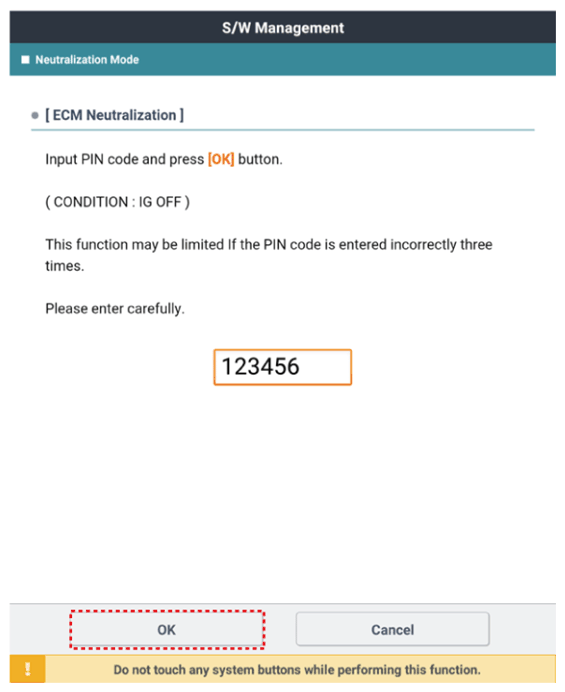

G13047471

Courtesy of KIA MOTORS AMERICA, INC.

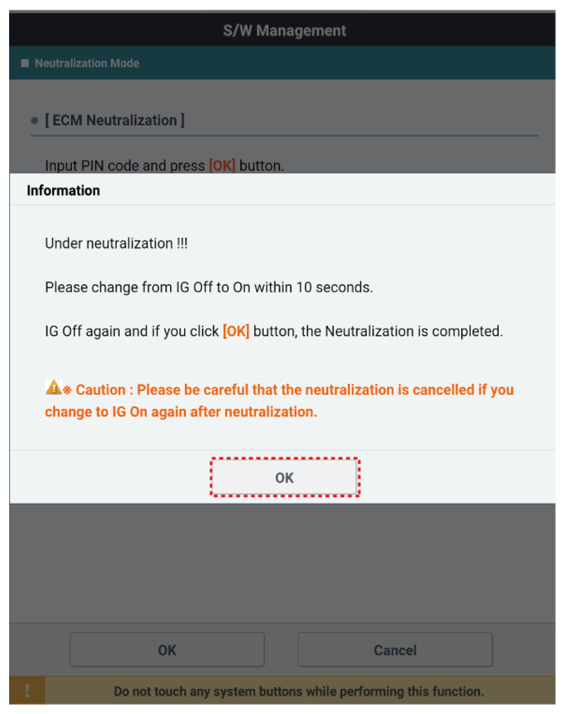

G13047472

Courtesy of KIA MOTORS AMERICA, INC.

G13047473

Courtesy of KIA MOTORS AMERICA, INC.

G13047474

Courtesy of KIA MOTORS AMERICA, INC.

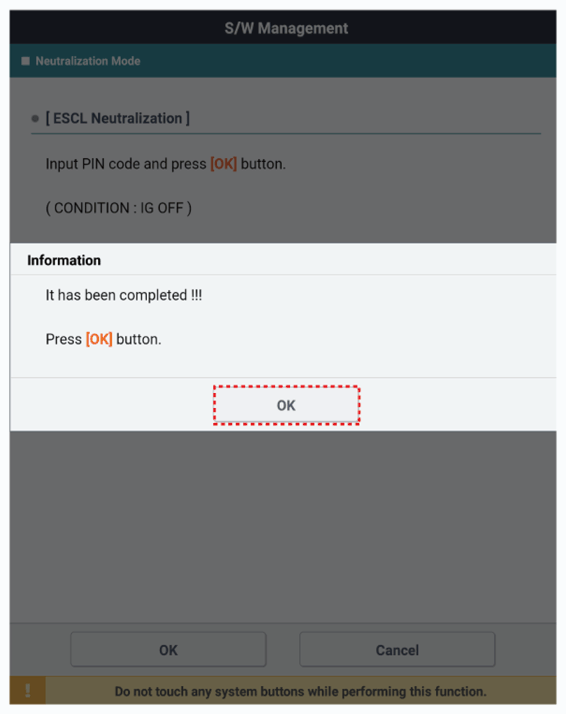

G13047475

Courtesy of KIA MOTORS AMERICA, INC.

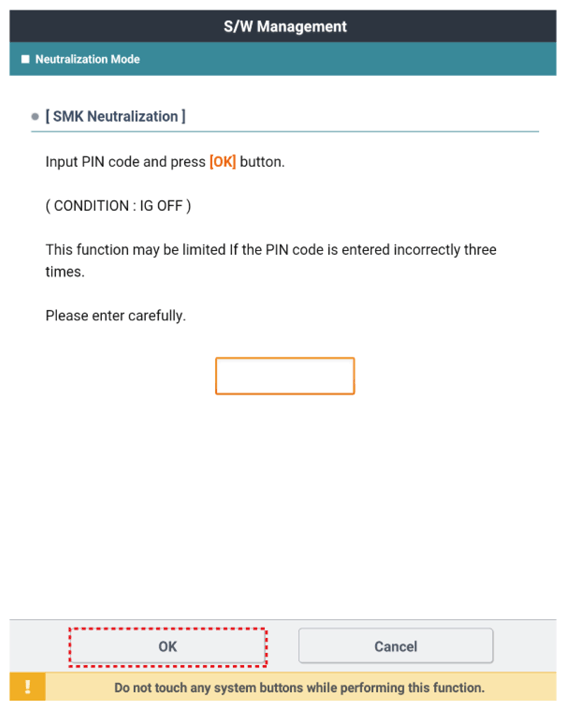

G13047476

Courtesy of KIA MOTORS AMERICA, INC.

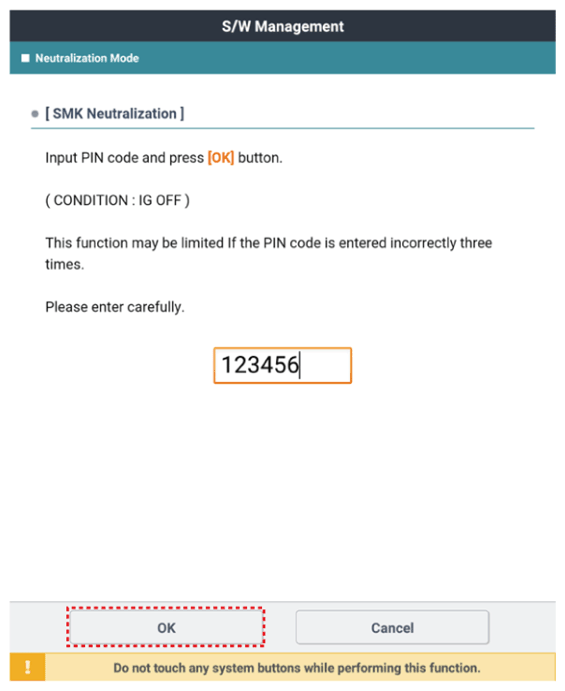

G13047477

Courtesy of KIA MOTORS AMERICA, INC.

G13047478

Courtesy of KIA MOTORS AMERICA, INC.
