Repair Procedures: Replacement

Open the front seat mounting bolt cap (A), then loosen the mounting bolts (B).
Tightening torque:

44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)

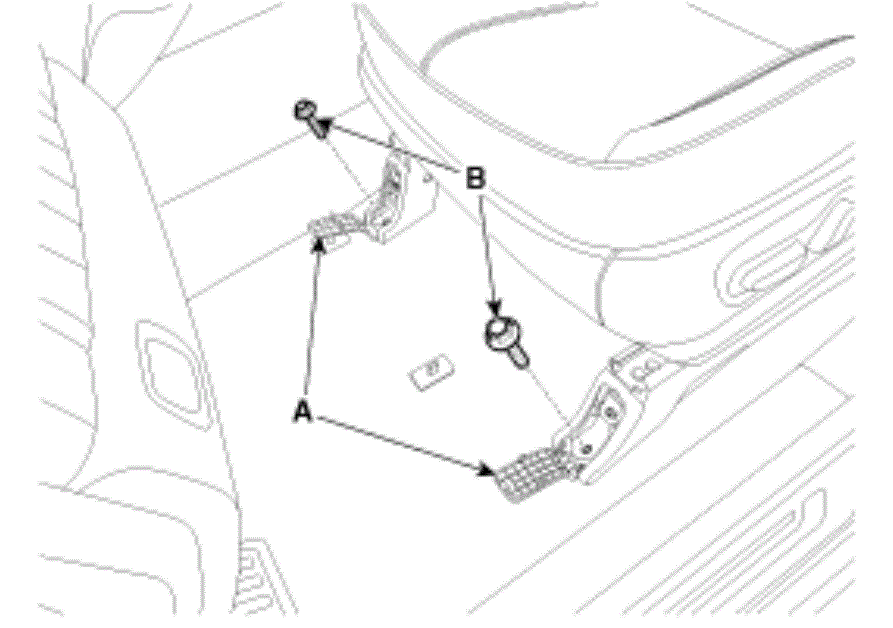

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

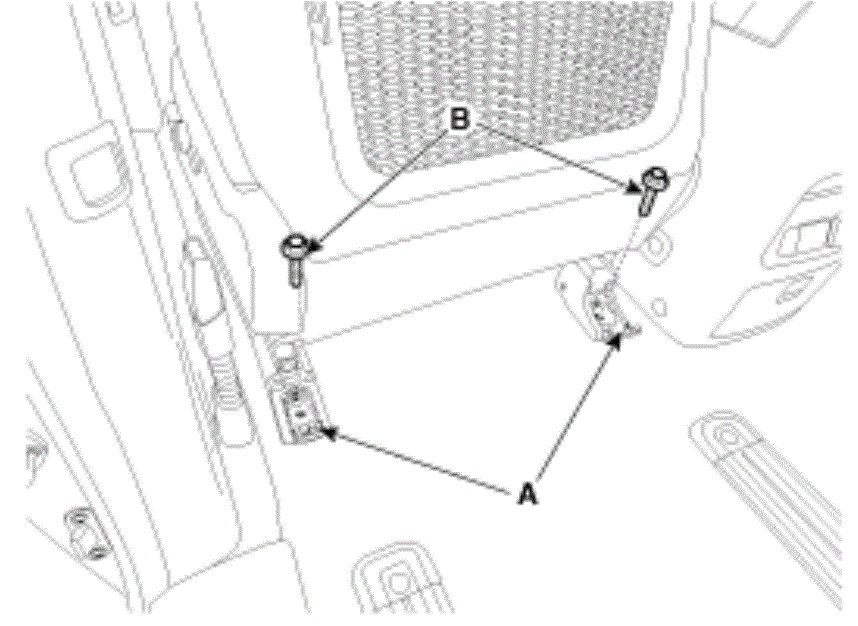

[Rear ]

Courtesy of KIA MOTORS AMERICA, INC.

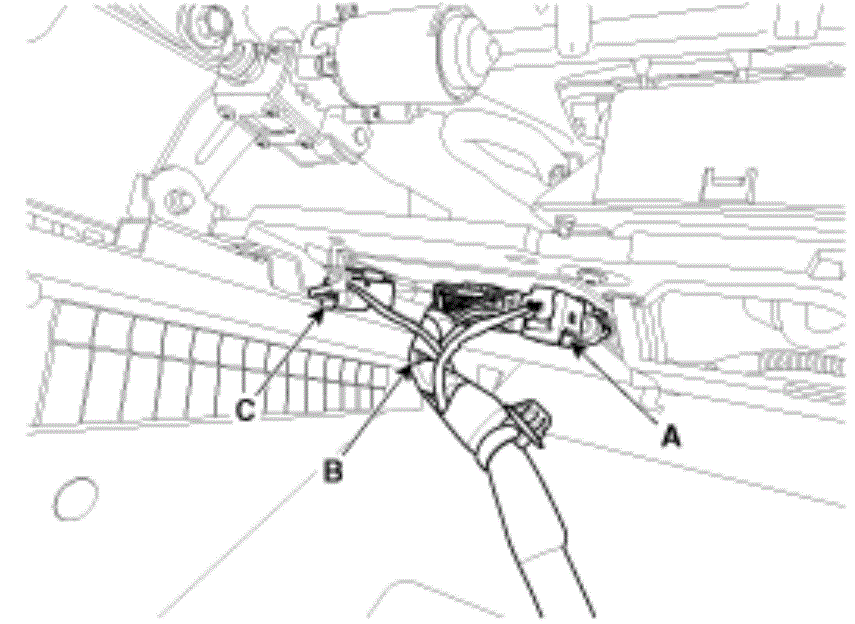

Disconnect the airbag connector (A), seat warmer & power seat connector (B) and front seat belt buckle connector (C).
[Driver's]

Courtesy of KIA MOTORS AMERICA, INC.

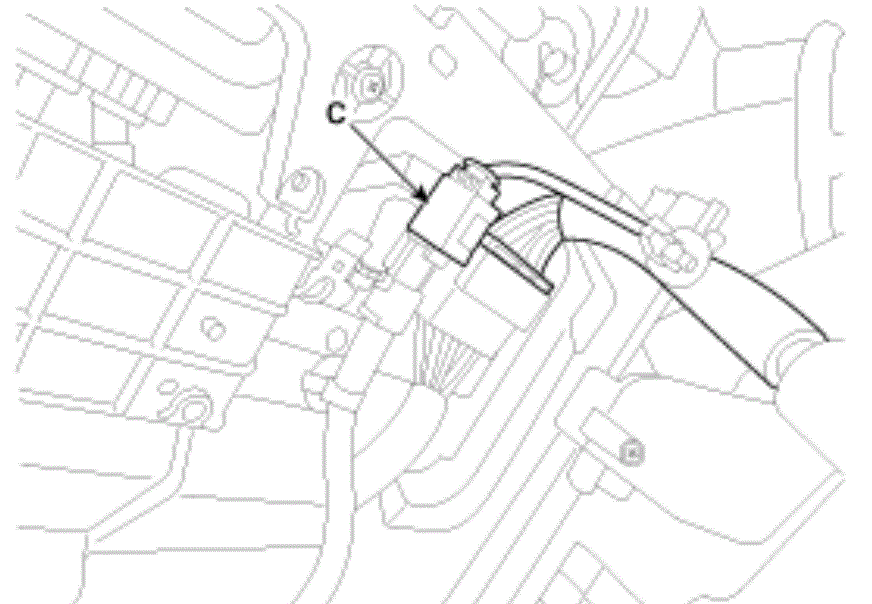

[Passenger's ]

Courtesy of KIA MOTORS AMERICA, INC.

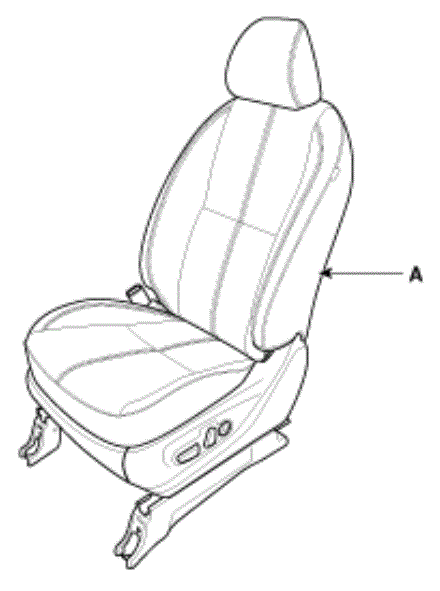

Remove the front seat assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Seat Mounting Bolt Installation Procedure
- Set the seat in the rearmost position. Check that each slide is locked, and then temporarily tighten the front mounting bolts.
- Set the seat in the foremost position. Check that each slide is locked, and then completely tighten the rear mounting bolts.
- Set the seat in the rearmost position again and then completely tighten the front mounting bolts.
- Check that the seat operates to and fro smoothly and that the locking portion locks properly.
