Repair Procedures: Removal

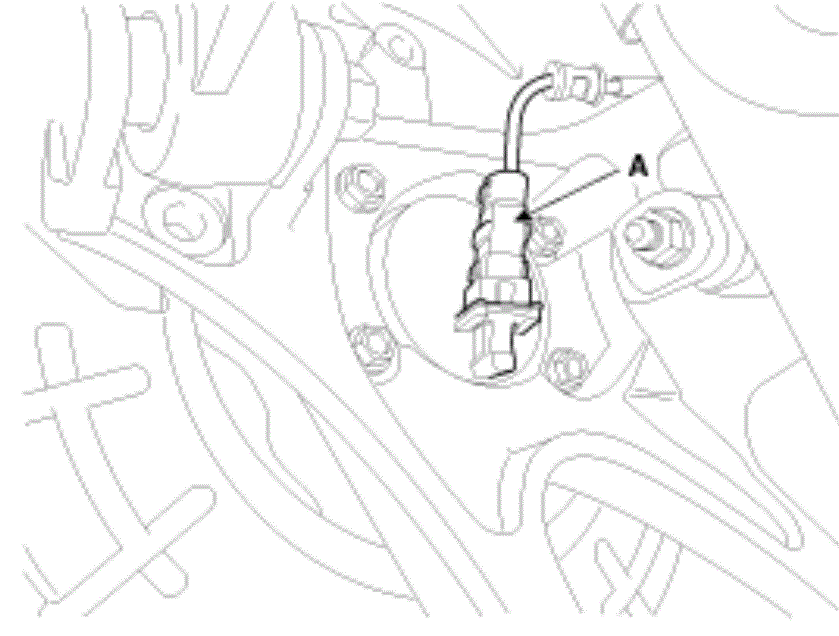

  1. Remove the rear wheel speed sensor connector (A).
    G13045657Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the rear wheel speed sensor.

    (Refer to Driveshaft and Axle - "REAR HUB - CARRIER ")

  3. Install in the reverse order of removal.
