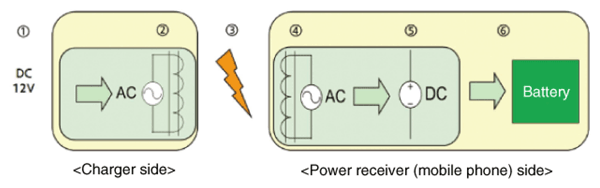

Wireless Power Charging System Flow Chart

G13047623Courtesy of KIA MOTORS AMERICA, INC.
  1. Supply vehicle power.
  2. Convert to AC. Generate electromagnetic field in 1st coil.
  3. Generate induced current in power receiver from electromagnetic induction.
  4. Generate AC in 2nd coil.
  5. Convert to DC.
  6. Charge battery.
