Component Inspection: Notes
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

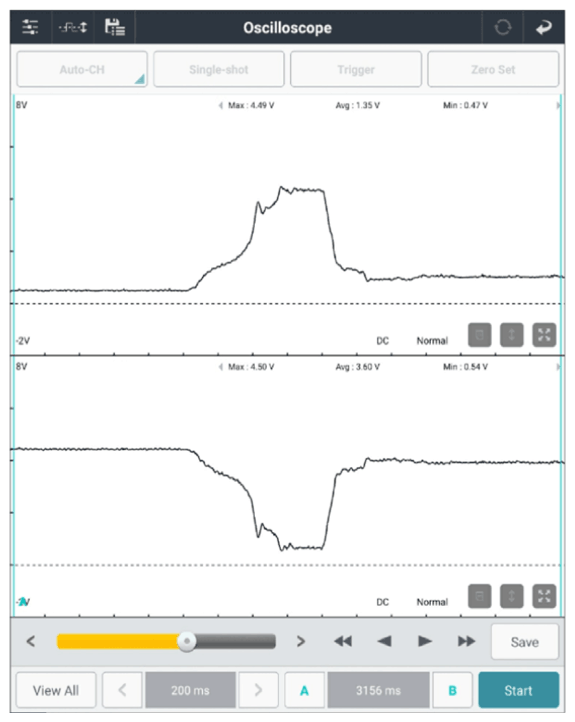

TPS harness connector | 6 (TPS.1 Signal) | Chassis ground | - | figures 1 below. |
| TPS harness connector | 4 (TPS.2 Signal) | Chassis ground | - | ||
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the Throttle Position Sensor (ETC Motor) and go to "VERIFICATION OF REPAIR " procedure.
