Circuit Inspection

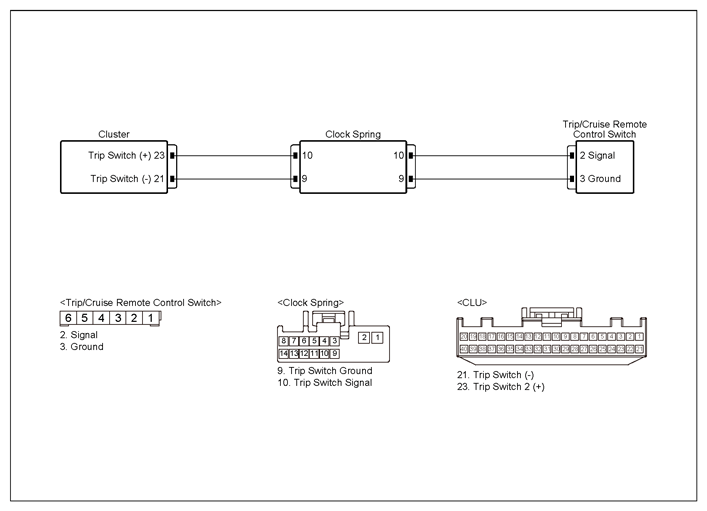

G13040830

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component and cluster. Ignition "ON".	Cruise Remote Switch connector	2 (Signal)	Chassis ground	-	Approx. 0V
	Cruise Remote Switch connector	3 (Ground)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component and cluster.	Cruise Remote Switch connector	2 (Signal)	Cluster connector	23 (TRIP switch +)	below 1Ω
	Cruise Remote Switch connector	3 (Ground)	Cluster connector	21 (TRIP switch -)	below 1Ω
	Cruise Remote Switch connector	2 (Signal)	Chassis ground	-	∞ (Infinite)Ω
	Cruise Remote Switch connector	3 (Ground)	Chassis ground	-	∞ (Infinite)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
