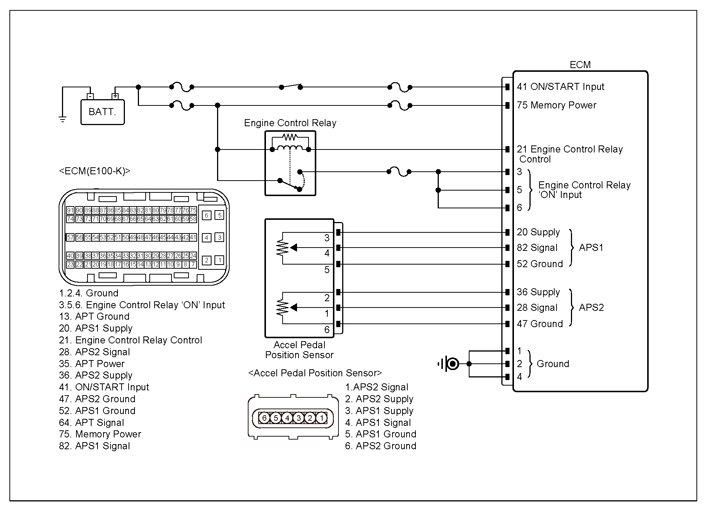

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
APS1 connector | 3 (Power) | Chassis ground | - | Approx. 5V |
|
APS1 connector | 5 (Ground) | Chassis ground | - | Approx. 1Ω |
|
APS1 connector | 4 (Signal) | ECM connector | 82 (Signal) | Approx. 1Ω |
| APS1 connector | 4 (Signal) | Chassis ground | - | ∞ (Infinity)Ω | |
| APS1 connector | 4 (Signal) | APS1 connector | 3 (Power) | ∞ (Infinity)Ω | |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the Accelerator Pedal Sensor and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
