Off-Line on KDS

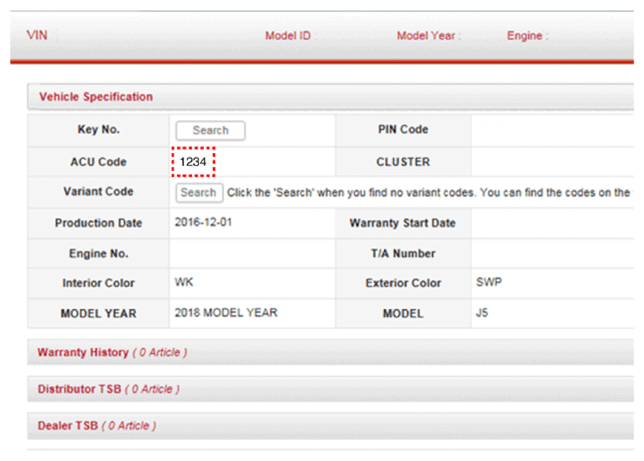

  1. Confirm the ACU variant coding code from the KDS server after inputting the VIN to the KDS sever.
    G13481567Courtesy of KIA MOTORS AMERICA, INC.
  2. Switch "OFF" ignition, and connect KDS.
  3. With ignition "ON" & Engine "OFF", select vehicle name and airbag system.
  4. Select Variant coding mode.

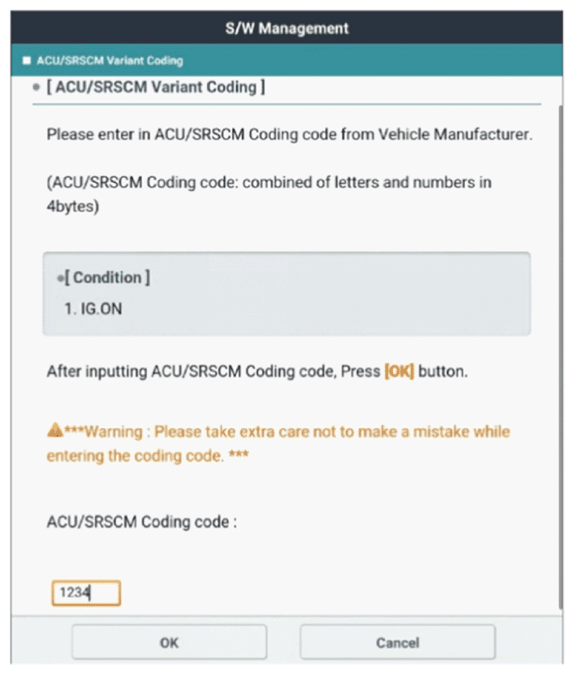

  5. Input the ACU coding code.
G13481568Courtesy of KIA MOTORS AMERICA, INC.
