Smart Key Status Check

  1. Connect the VCI dongle of the KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

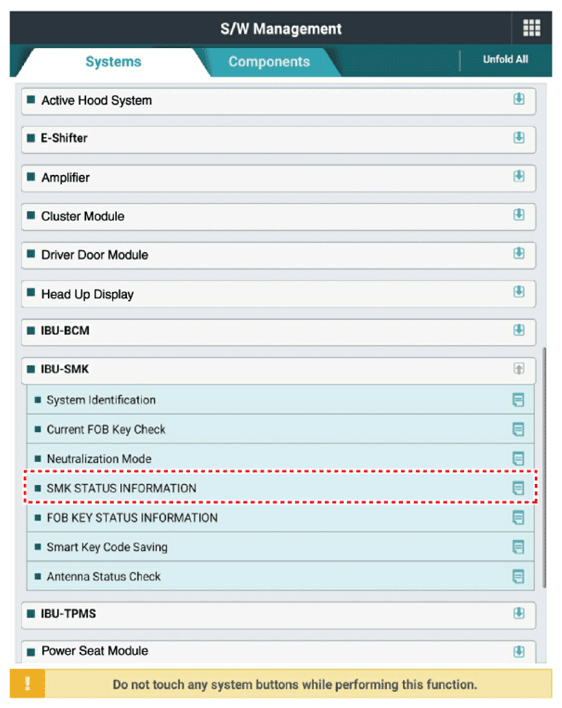

    G13482098Courtesy of KIA MOTORS AMERICA, INC.

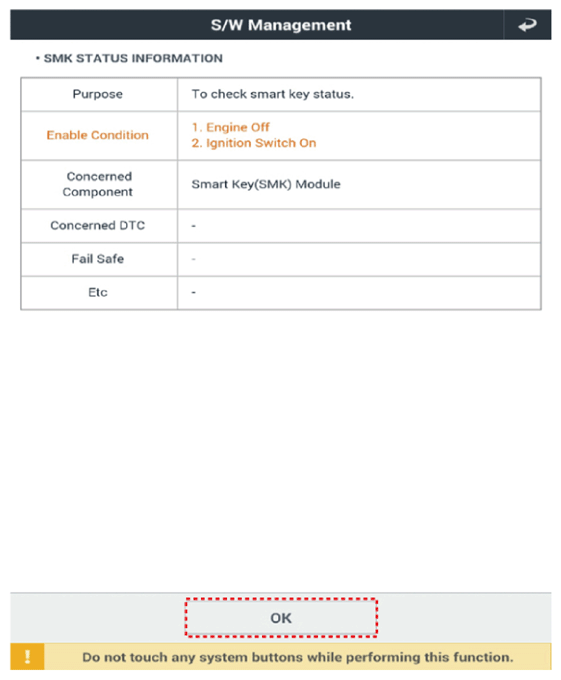

    G13482099Courtesy of KIA MOTORS AMERICA, INC.

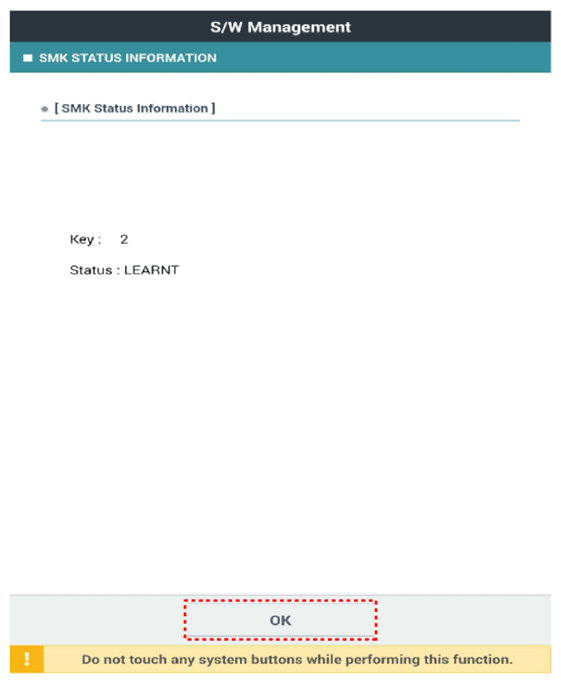

    G13482100Courtesy of KIA MOTORS AMERICA, INC.
