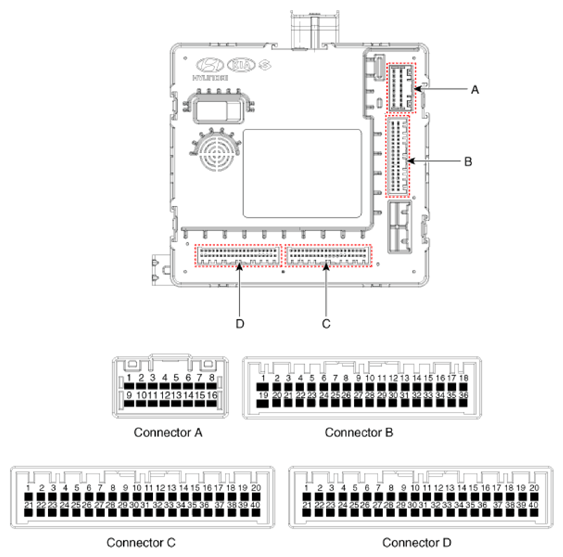

| 1 |
ESCL (+) (Output) |
- |
- |
- |
| 2 |
Front heated nozzle (Output) |
- |
- |
- |
| 3 |
Rear washer switch (Input) |
- |
Mirror fold (Output) |
- |
| 4 |
Front washer switch (Input) |
- |
- |
- |
| 5 |
- |
LIN1 (PDW-R) |
- |
ESCL Enable (Output) |
| 6 |
Ground (Power) |
PDW-R Power (Input) |
Dedicated DRL option (Input) |
RPM (Input) |
| 7 |
Ground (ECU) |
PDW-R Power (Output) |
- |
Starter relay (Output) |
| 8 |
ESCL (-) (Output) |
PDW-F Power (Output) |
Rear seat belt indicator_Left (Output) |
ACC relay (Output) |
| 9 |
Battery + (ECU) |
AT Solenoid (Output) |
Auto light sensor ground (Output) |
Start feed back (Input) |
| 10 |
Battery + (Power) |
Headlamp high switch (Input) |
RVM Switch (Input) |
SSB Switch 2 (Input) |
| 11 |
IGN1 (Input) |
Front wiper switch (Input) |
PDW-R Switch (Input) |
Tailgate interior antenna 3 (-) (Output) |
| 12 |
Kline Immobilizer |
Front wiper volume switch (Input) |
'P' position (Input) |
Interior antenna 1 (-) (Output) |
| 13 |
- |
Wiper parking switch (Input) |
Assist outside handle switch (Input) |
- |
| 14 |
- |
External buzzer (Output) |
Multifunction switch ground (Input) |
Assist outside handle antenna (-) (Output) |
| 15 |
- |
PDW-R Indicator switch (Output) |
ACC (Input) |
- |
| 16 |
- |
- |
IGN2 (Input) |
- |
| 17 |
|
- |
Front wiper low back up switch (Input) |
- |
| 18 |
- |
Brake switch (Input) |
Driver outside handle antenna (-) (Output) |
| 19 |
- |
- |
Immobilizer antenna ground (Output) |
| 20 |
- |
- |
- |
| 21 |
- |
- |
- |
| 22 |
LIN3 (Rain sensor) |
PDW Option (Input) |
- |
| 23 |
- |
Mirror unfold (Output) |
- |
| 24 |
- |
- |
- |
| 25 |
Front wiper low relay (Output) |
- |
- |
| 26 |
Front wiper high relay (Output) |
- |
Wheel speed sensor (Input) |
| 27 |
Rear wiper relay (Output) |
Rear seat belt indicator_Center (Output) |
IGN2 relay (Output) |
| 28 |
Fog switch (Input) |
Rear seat belt indicator_Right (Output) |
IGN1 relay (Output) |
| 29 |
Light switch (Input) |
Auto light sensor power (Output) |
SSB symbol illumination (+) (Output) |
| 30 |
Rear wiper switch (Input) |
Auto light sensor signal (Input) |
SSB switch 1 (Input) |
| 31 |
- |
Sun roof status (Input) |
Tailgate interior antenna 3 (+) (Output) |
| 32 |
- |
ESCL Unlock switch (Input) |
Interior antenna 1 (+) (Output) |
| 33 |
ESCL COM |
Clutch ignition lock switch (Input) |
- |
| 34 |
EMS ECU Wake Up (Output) Door unlock signal (For IFU) (Output) |
Driver outside handle switch (+) (Input) |
Assist outside handle antenna (+) (Output) |
| 35 |
- |
B-CAN (High) |
- |
| 36 |
- |
B-CAN (Low) |
- |
| 37 |
|
P-CAN (High) |
- |
| 38 |
P-CAN (Low) |
Driver outside handle antenna (+) (Output) |
| 39 |
- |
Immobilizer antenna power (Output) |
| 40 |
- |
- |
