Smart Key Code Saving

  1. Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.
  2. Select the vehicle model and then do "Smart key code saving".

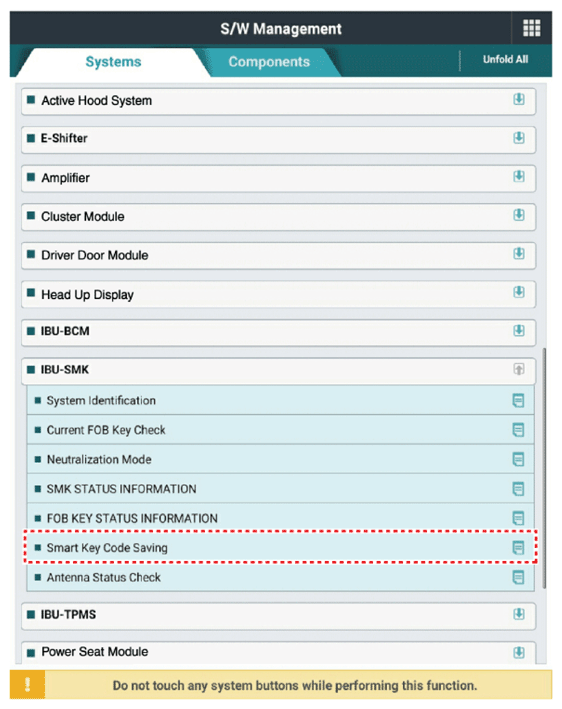

    G13482058Courtesy of KIA MOTORS AMERICA, INC.

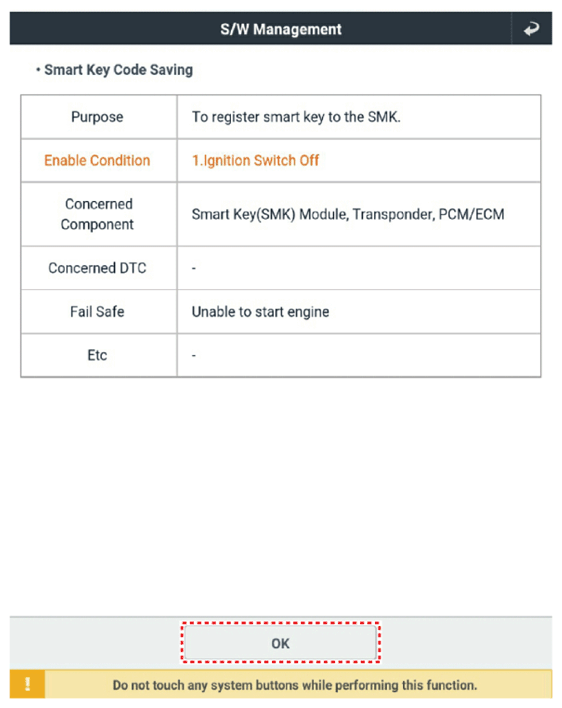

    G13482059Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

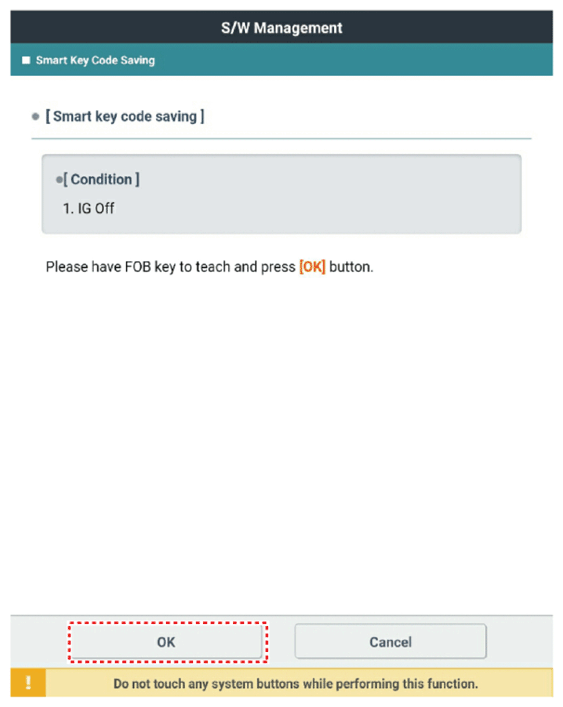

    G13482060Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.
  5. Input the "Pin code" for first key teaching.

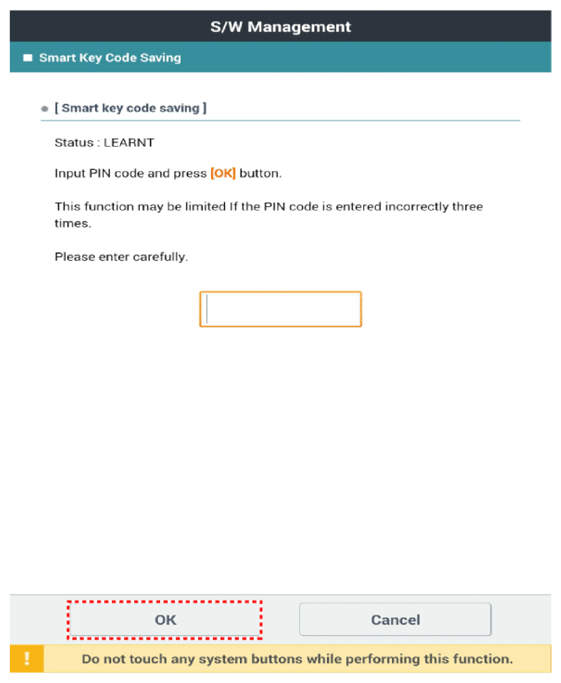

    G13482061Courtesy of KIA MOTORS AMERICA, INC.
    G13482062Courtesy of KIA MOTORS AMERICA, INC.

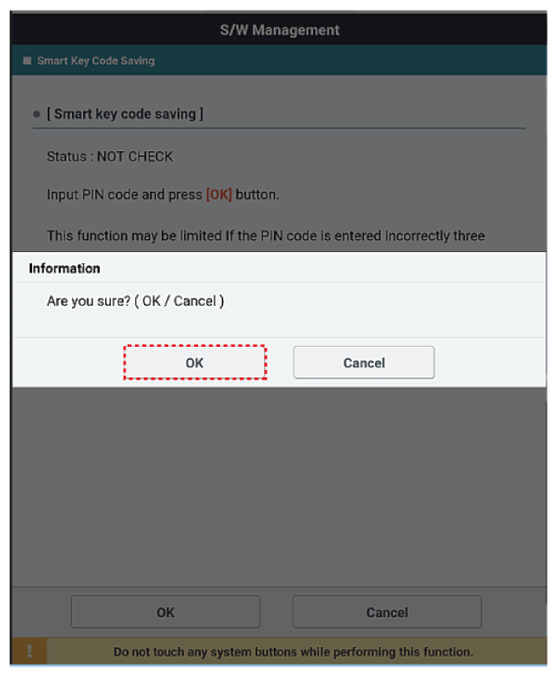

    G13482063Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

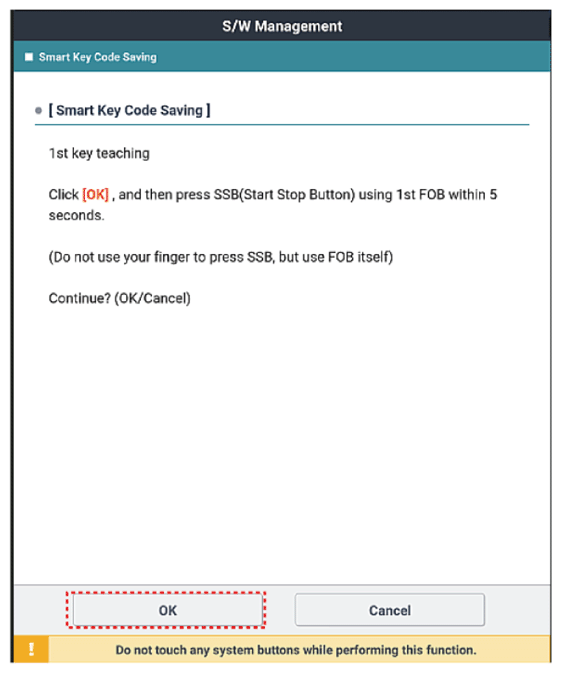

    G13482064Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 seconds after pressing "OK".

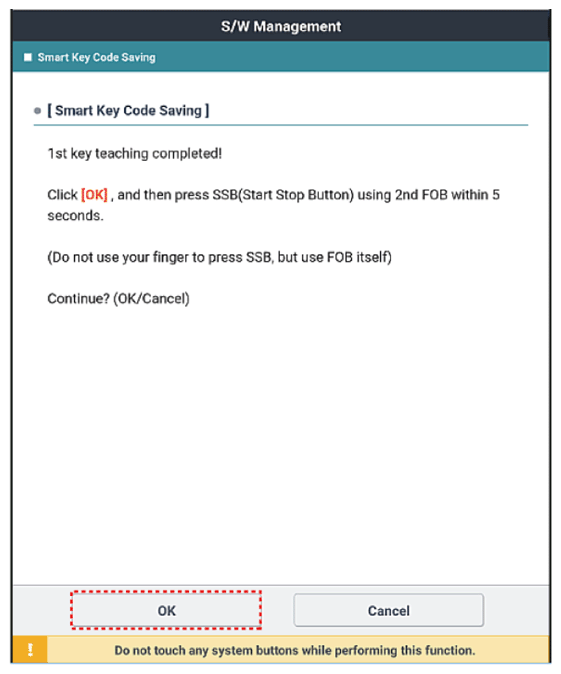

    G13482065Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".

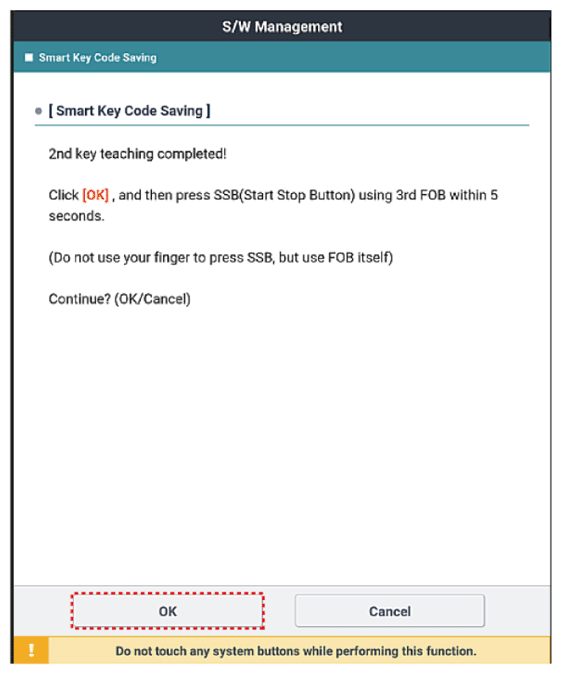

    G13482066Courtesy of KIA MOTORS AMERICA, INC.

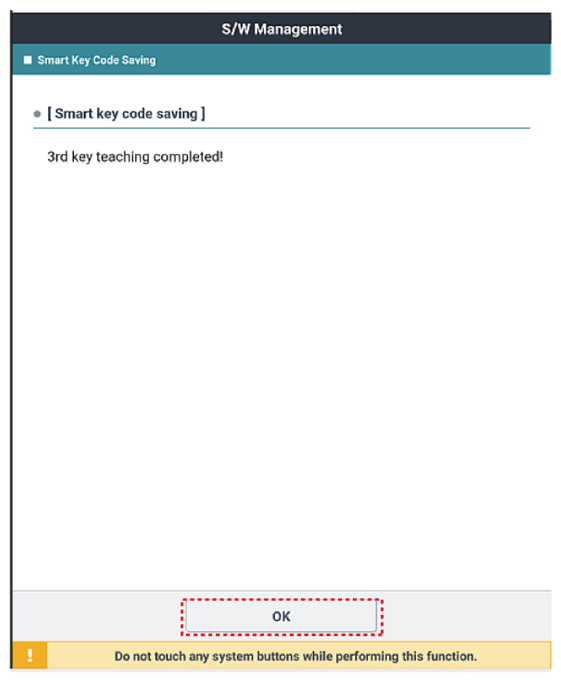

    G13482067Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be shown as below when key teaching process is completed.

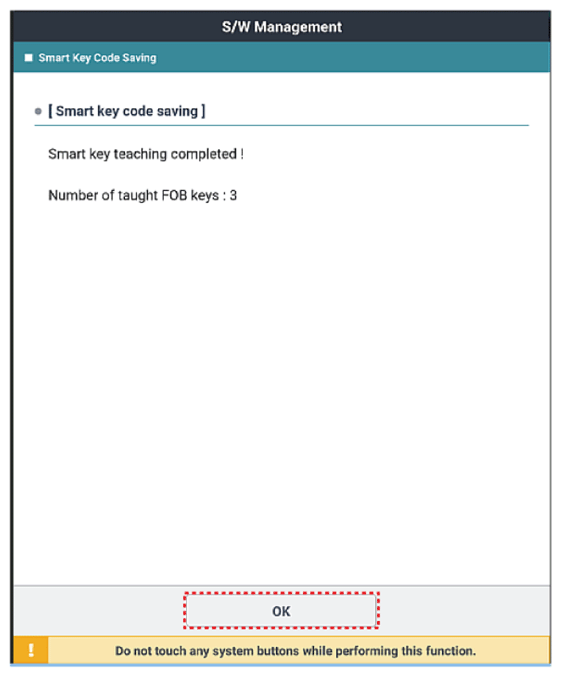

    G13482068Courtesy of KIA MOTORS AMERICA, INC.
