Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat back cover.

    (Refer to Front Seat - "FRONT SEAT BACK COVER ")

  2. Remove the front seat cushion cover.

    (Refer to Front Seat - "FRONT SEAT CUSHION COVER ")

  3. Remove the side airbag (SAB) module.

    (Refer to Airbag Module - "SIDE AIRBAG (SAB) MODULE ")

  4. Remove the lumbar support assembly.

    (Refer to Body Electrical System - "LUMBAR SUPPORT SYSTEM ")

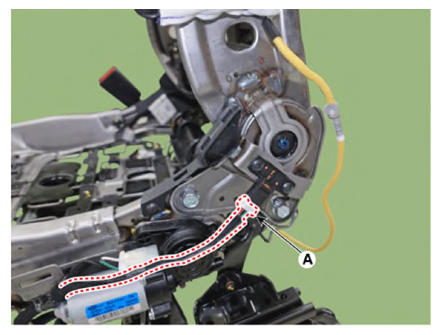

  5. Disconnect the connector (A).
    G13486449Courtesy of KIA MOTORS AMERICA, INC.

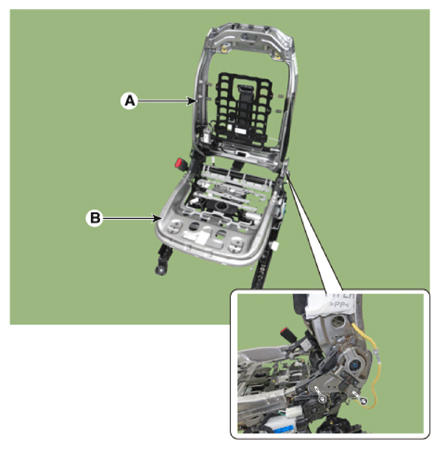

  6. After loosening the mounting bolts, detach the front seat back frame assembly (A) from the front seat cushion frame assembly (B).

    Tightening torque:

    44.1 - 49.0 N.m (4.5 - 5.0 Kgf.m, 32.5 - 36.2 lb.ft)

    G13486450Courtesy of KIA MOTORS AMERICA, INC.
  7. To install, reinstall in reverse order of removal procedure.

    Information

    • For the seat equipped with side airbag, remove the side airbag from the seat frame assembly. (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")
    • Before service, be fully aware of precautions and service procedure relevant to air bag. (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")
