Repair Procedures: Removal

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front tires straight-ahead before removing the steering wheel.
    NOTE: If the steering wheel and the front tires are not set straight ahead together, it may affect the number of circulation of steering wheel and damage the cable inside the clock spring.
  2. Disconnect the negative battery terminal.
    NOTE: After disconnecting the negative battery terminal, wait at least 30 seconds.
  3. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  4. Remove the steering column shroud lower panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

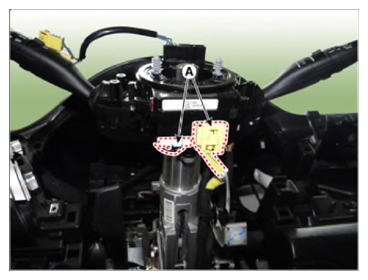

  5. Disconnect the clock spring connectors (A).
    G13481585Courtesy of KIA MOTORS AMERICA, INC.

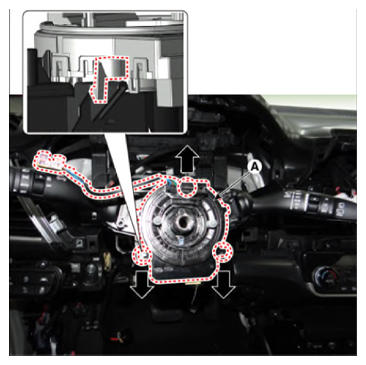

  6. Remove the clock spring (A) by pulling the fixing hooks in the direction of arrow.
    G13481586Courtesy of KIA MOTORS AMERICA, INC.
