Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 to 5
G13484891Courtesy of KIA MOTORS AMERICA, INC.

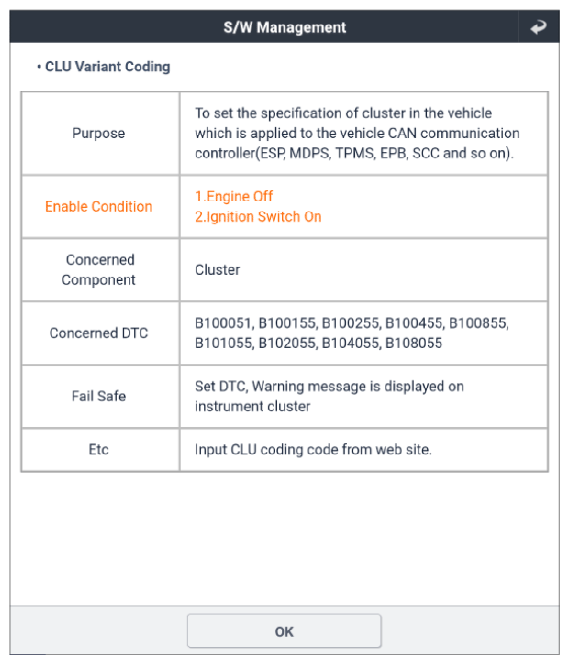

G13484892Courtesy of KIA MOTORS AMERICA, INC.

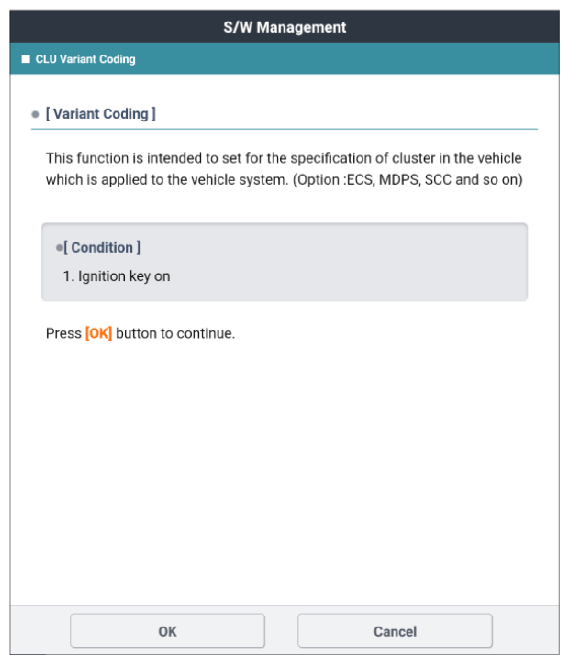

G13484893Courtesy of KIA MOTORS AMERICA, INC.

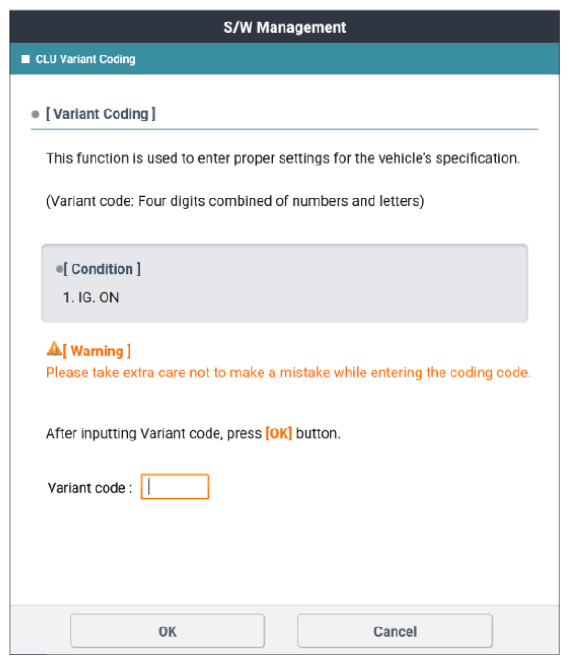

G13484894Courtesy of KIA MOTORS AMERICA, INC.
G13484895Courtesy of KIA MOTORS AMERICA, INC.
