Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.

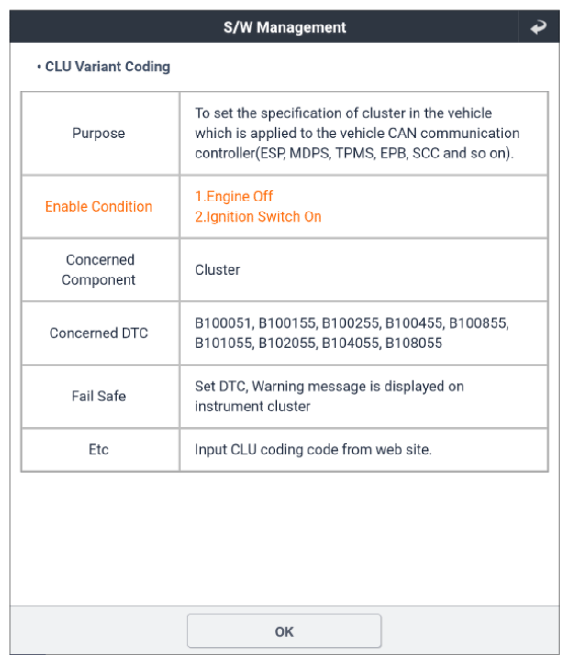

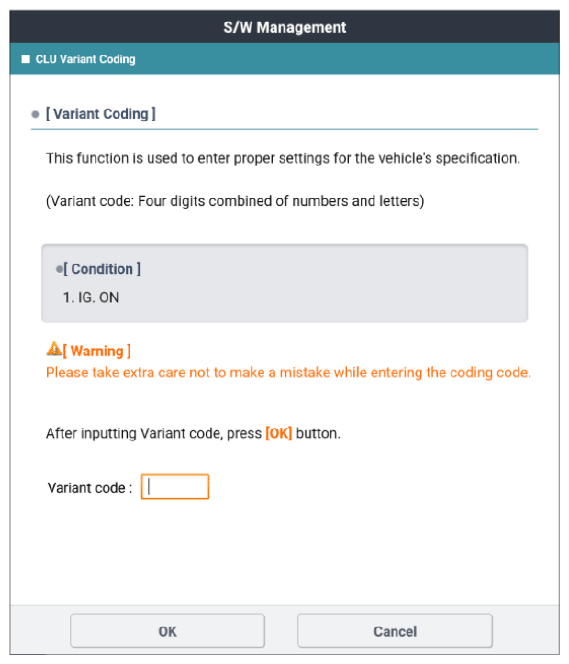

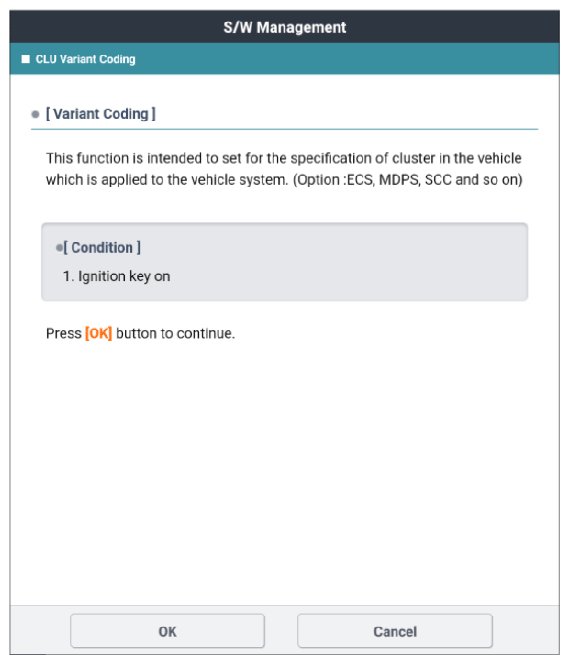

Fig.1 to 5
G13484911Courtesy of KIA MOTORS AMERICA, INC.
G13484912Courtesy of KIA MOTORS AMERICA, INC.
G13484913Courtesy of KIA MOTORS AMERICA, INC.
G13484914Courtesy of KIA MOTORS AMERICA, INC.
G13484915Courtesy of KIA MOTORS AMERICA, INC.
