Components & Components Location: Components

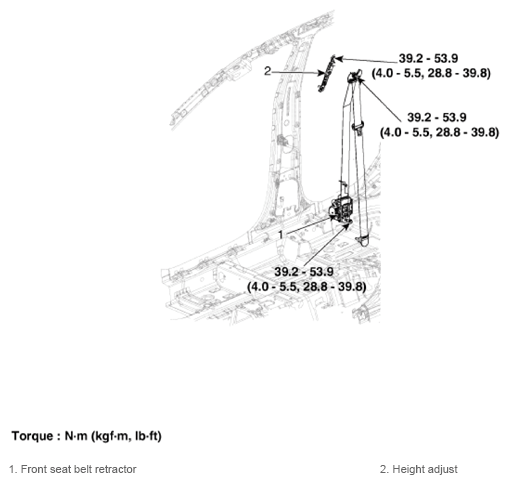

Fig 1: Front Seat Belt Components Location With Torque Specification
G13486516Courtesy of KIA MOTORS AMERICA, INC.
