Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

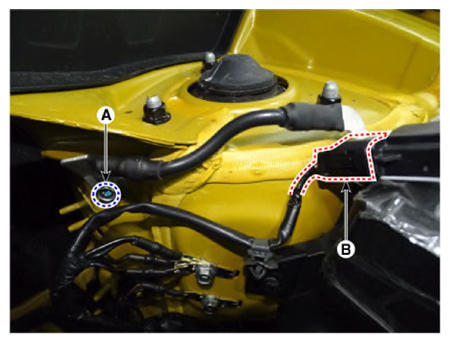

Loosen the mounting bolt (A) after disconnecting the battery sensor connector (B).
Tightening torque :

26.4 - 32.3 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
