Components & Components Location: Components

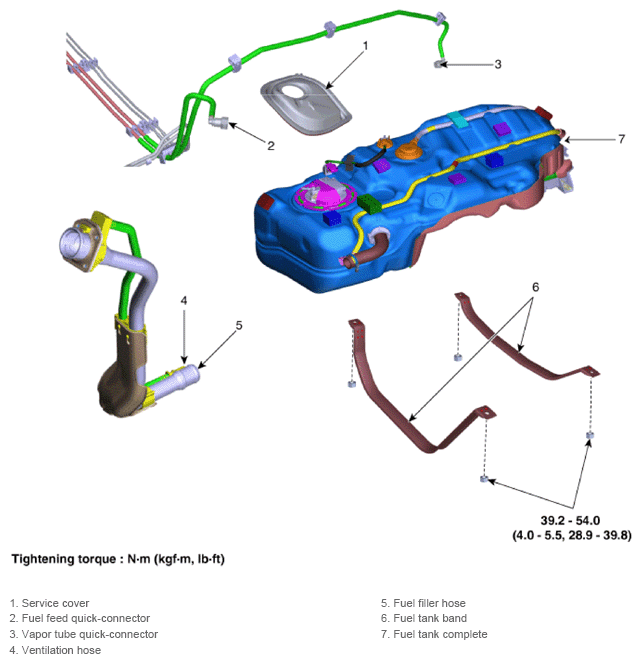

Fig 1: Fuel Tank Components Location With Torque Specification (1 Of 1)
G13480706Courtesy of KIA MOTORS AMERICA, INC.

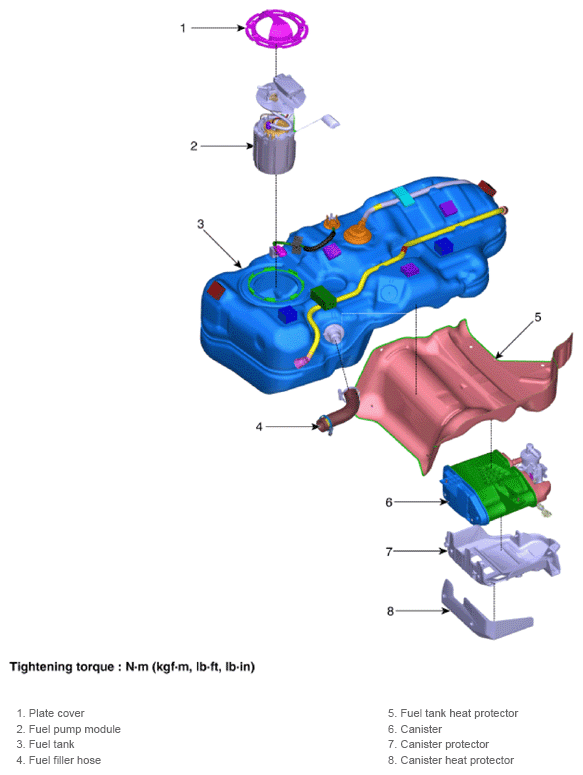

Fig 2: Fuel Tank Components Location With Torque Specification (2 Of 2)
G13480707Courtesy of KIA MOTORS AMERICA, INC.
