Repair Procedures: Removal

Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

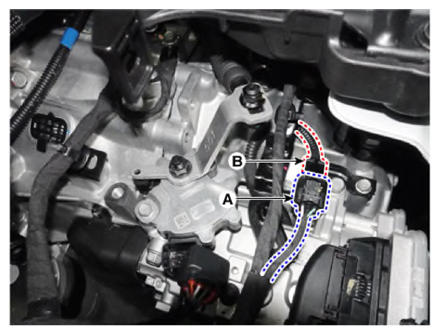

After disconnecting the speed sensor connector (A), remove the connector (B) from the bracket.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the clutch actuator & TCM assembly.
(Refer to Dual Clutch Transmission Control System - "CLUTCH ACTUATOR & ASSEMBLY ")

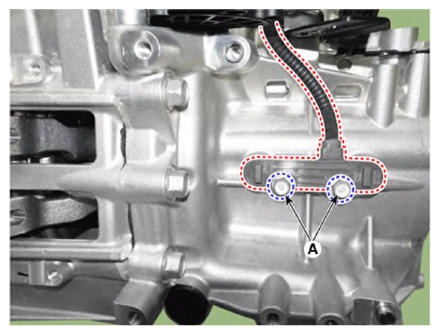

Remove the input shaft speed sensor (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
