Components & Components Location: Components

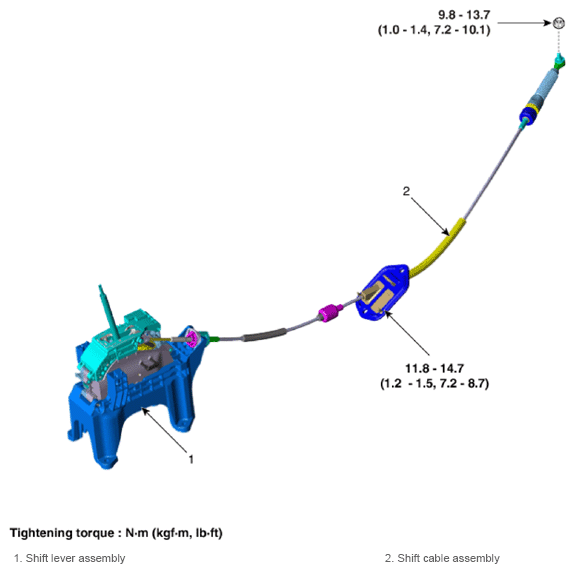

Fig 1: Shift Cable Components Location With Torque Specification
G13480915Courtesy of KIA MOTORS AMERICA, INC.
