Repair Procedures: Installation

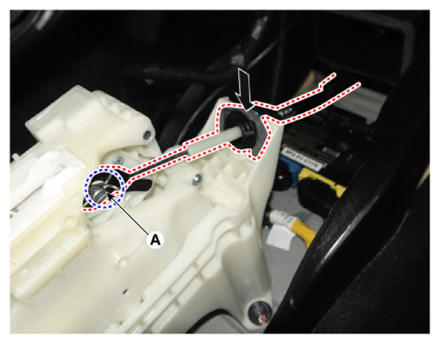

Install the shift cable retainer (A) by tightening nuts.
Tightening torque:

11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

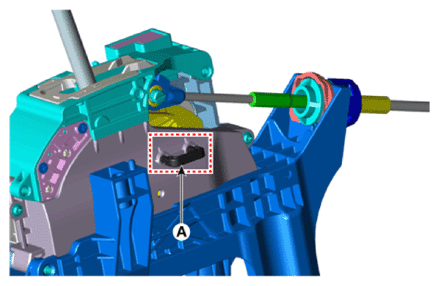

Insert "N range fixing pin" (A) of shift lever after checking the shift lever and manual control lever are on "N" range.

Courtesy of KIA MOTORS AMERICA, INC.

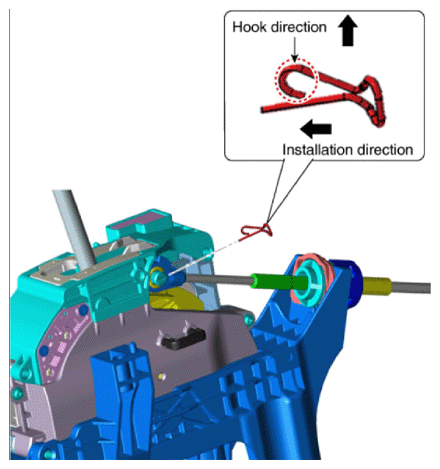

Install the shift cable to the lever pin and then insert the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Mind the installation direction of snap pin.

Courtesy of KIA MOTORS AMERICA, INC.

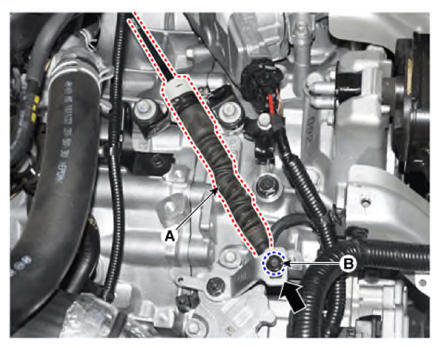

Tighten the nut (B) to the specified torque after removing free play by pushing the shift cable (A) in the direction of the arrow.

Tightening torque:

9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing shift cable clip must be replaced with new one. (Do not reuse it.)

Courtesy of KIA MOTORS AMERICA, INC.

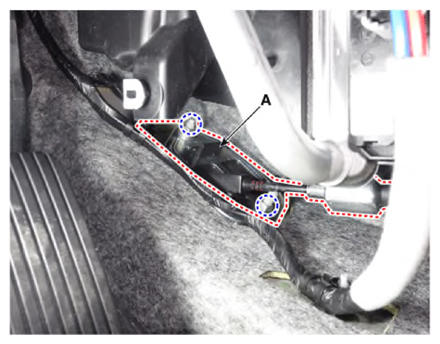

Remove the N range fixing pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

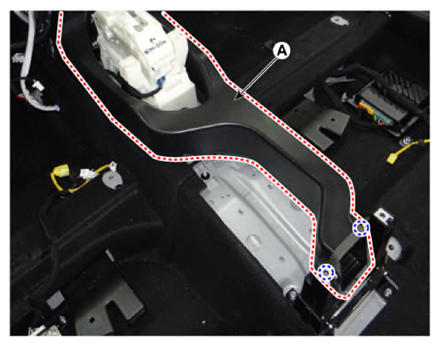

Install the air duct (A) by tightening the screws.

Courtesy of KIA MOTORS AMERICA, INC.
Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
