Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

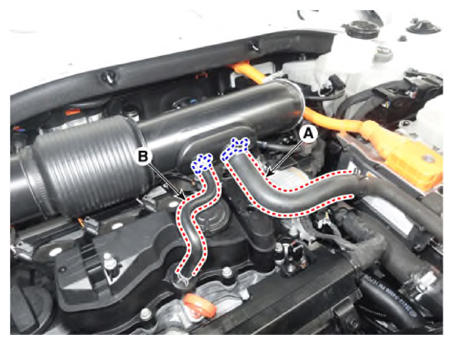

Disconnect the Recirculation Control Valve (RCV) hose (A) and breather hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

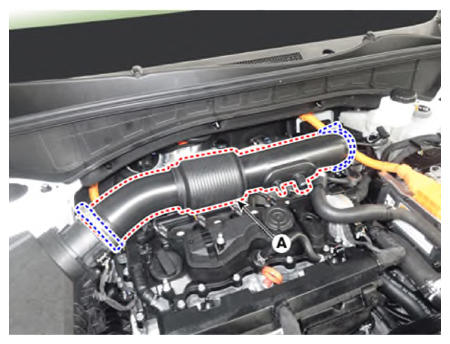

Remove the air intake hose (A) after removing the clamps.
Tightening torque :

3.0 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft, 26.0 - 43.3 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

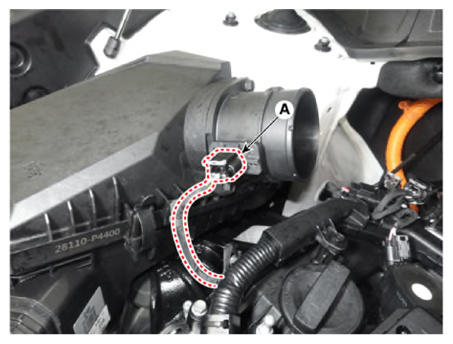

Disconnect the Air Flow Sensor (AFS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

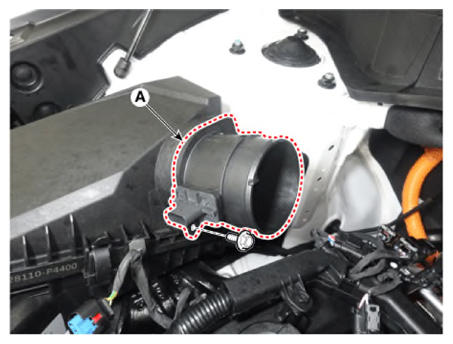

Remove the AFS (A) after removing the mounting bolts.
Tightening torque :

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
