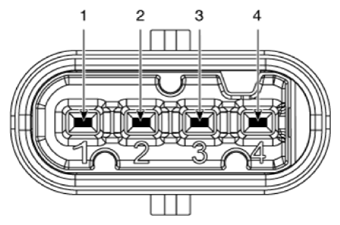

Connector And Terminal Function

G13575968

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Function
1	Power
2	Ground
3	Signal
4	-
