Repair Procedures: Removal

Disconnect the battery negative (-) terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

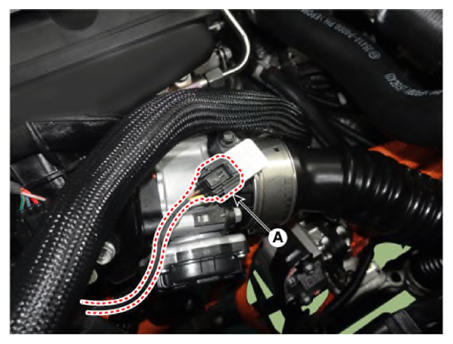

Disconnect the Boost Pressure Sensor (BPS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

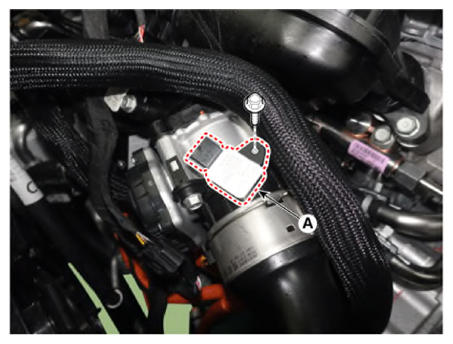

Remove the BPS (A) by removing the mounting bolts.
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
