Repair Procedures: Inspection: Removal

  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

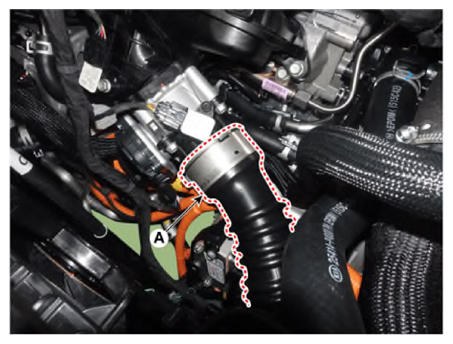

  2. Remove the air intake hose (A).
    G13576027Courtesy of KIA MOTORS AMERICA, INC.

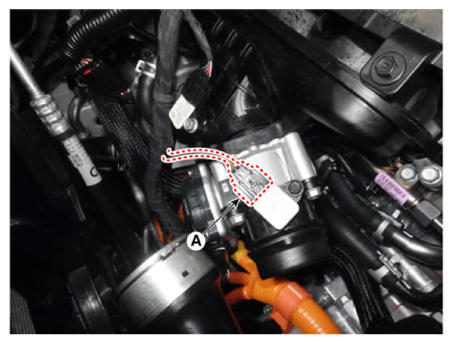

  3. Disconnect the Boost Pressure Sensor (BPS) connector (A).
    G13576028Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the ETC module connector (A).
    G13576029Courtesy of KIA MOTORS AMERICA, INC.

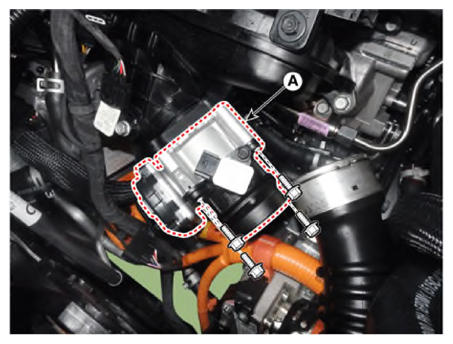

  5. Remove the ETC module (A) after removing the mounting bolts.

    Tightening torque  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13576030Courtesy of KIA MOTORS AMERICA, INC.
