Repair Procedures: Removal

Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

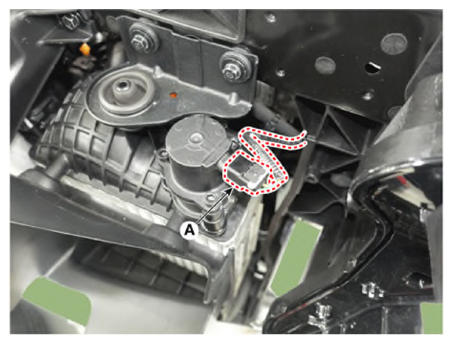

Disconnect the Electronic Recirculation Control Valve (E-RCV) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

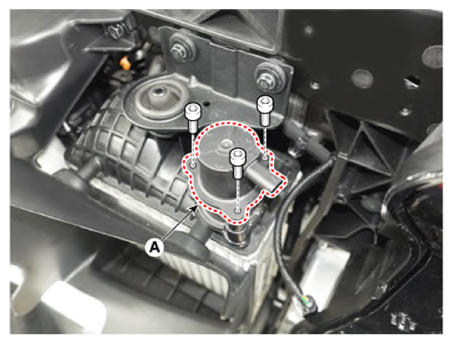

Remove the E-RCV (A) after removing the mounting bolts.
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
