Component Inspection

Inspection Condition Inspection Procedure Reference
  1. Engine "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor parameters in "Current Data" with KDS.

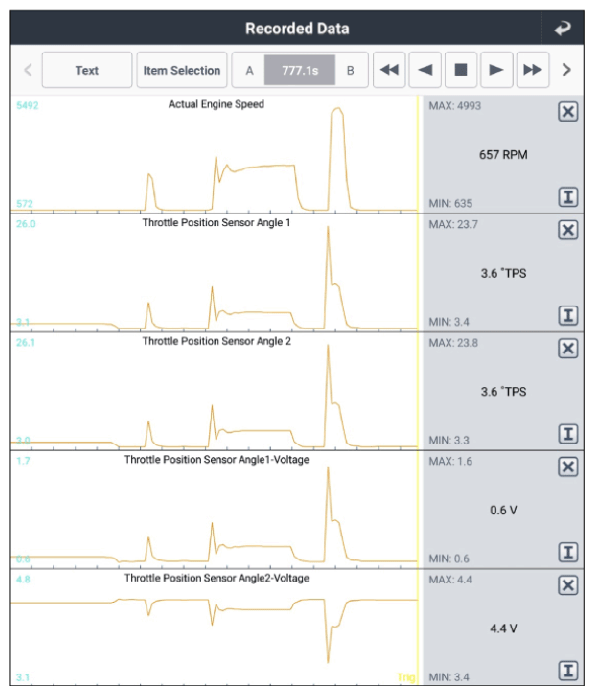

 Fig.1
G13291373Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Go to "Verification of Repair " procedure.

No Good

  1. Carefully re-do this troubleshooting guide steps.
  2. If no problems were found with the circuits or connectors, replace the Throttle Position Sensor (ETC motor) and go to "Verification of Repair " procedure.
