Double Clutch Transmission Control System - 1.6L
>>
Input Speed Sensor 1
>>
Components And Components Location
>>
Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location

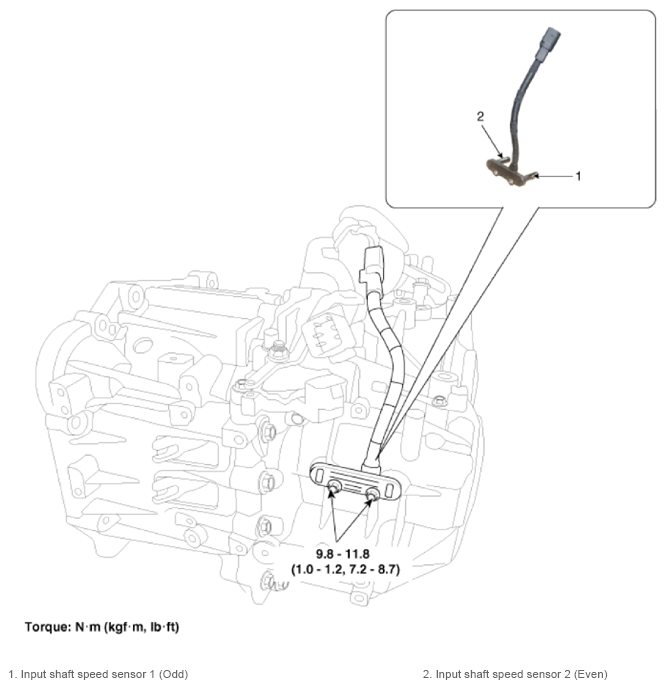

Fig 1: Input Speed Sensor 1 Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
