Repair Procedures: Removal

1. Remove the clutch actuator.

   (Refer to Double Clutch Transmission Control System - "CLUTCH ACTUATOR ASSEMBLY ")

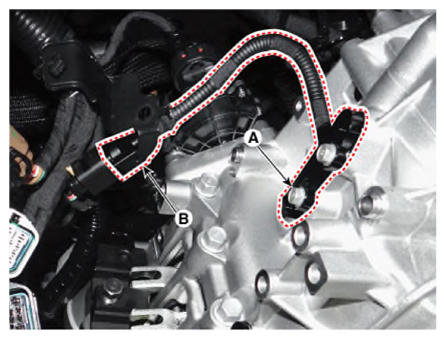

2. Remove the input speed sensor (A) by loosening the bolts after disconnecting the connector (B).

Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
