Repair Procedures: Removal

1. Shift the gear to "N".
2. Remove the air cleaner assembly.

   (Refer to Engine Mechanical System - "AIR CLEANER ")

3. Remove the battery and battery tray.

   (Refer to Body Electrical System - "BATTERY ")

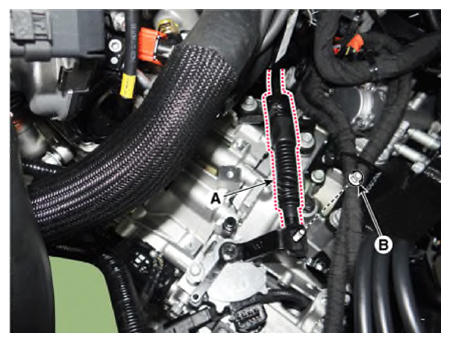

4. Remove the shift cable (A) from the bracket after loosening a nut (B).

   Courtesy of KIA MOTORS AMERICA, INC.

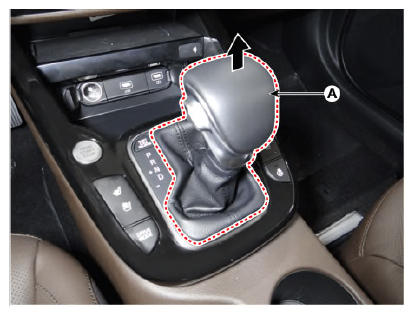

5. Remove the knob (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.

   Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the floor console assembly.

   (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

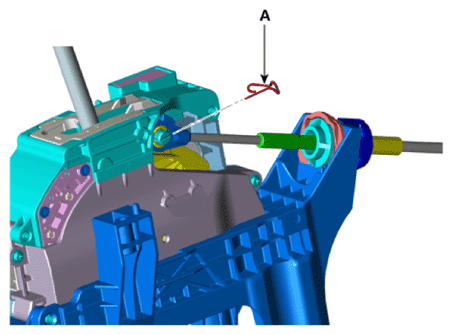

7. Remove the shift cable from the shift lever pin after removing the snap pin (A).

   Courtesy of KIA MOTORS AMERICA, INC.

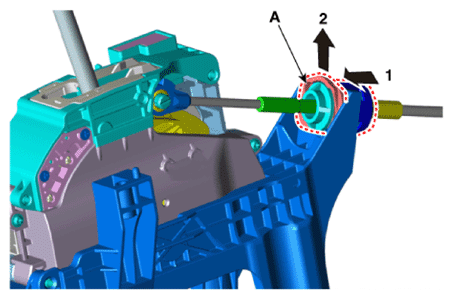

8. Remove the cable socket (A) from the shift lever.

   Courtesy of KIA MOTORS AMERICA, INC.

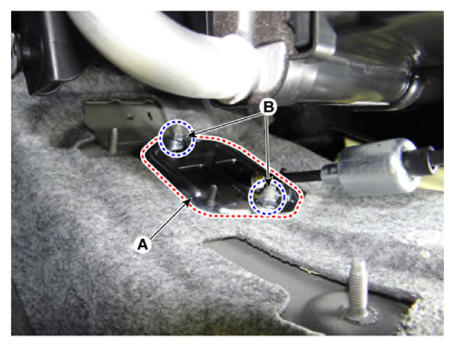

9. Remove the shift cable retainer (A) after loosening the nuts (B).

Then, remove the shift cable by pulling it toward the vehicle interior.

Courtesy of KIA MOTORS AMERICA, INC.
