Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Fig.1 to 10

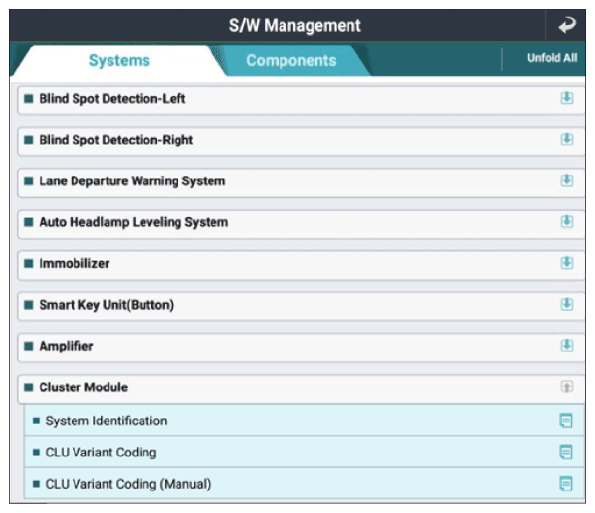

G13286113

Courtesy of KIA MOTORS AMERICA, INC.

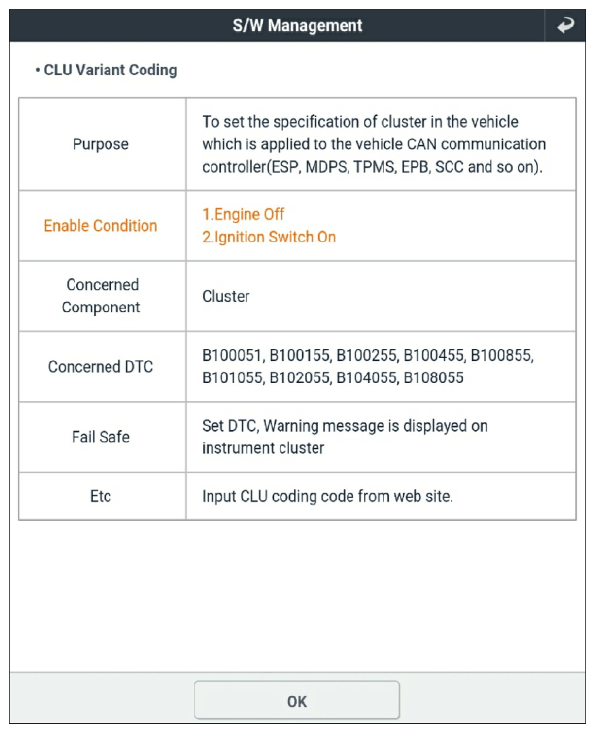

G13286114

Courtesy of KIA MOTORS AMERICA, INC.

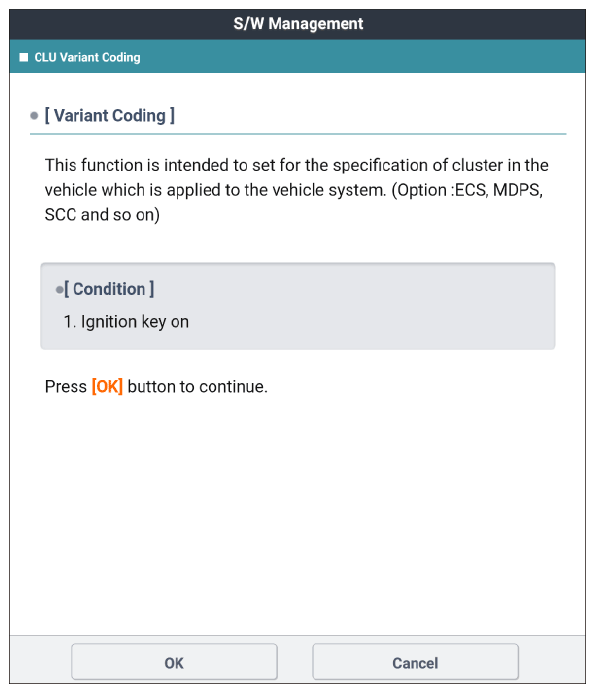

G13286115

Courtesy of KIA MOTORS AMERICA, INC.

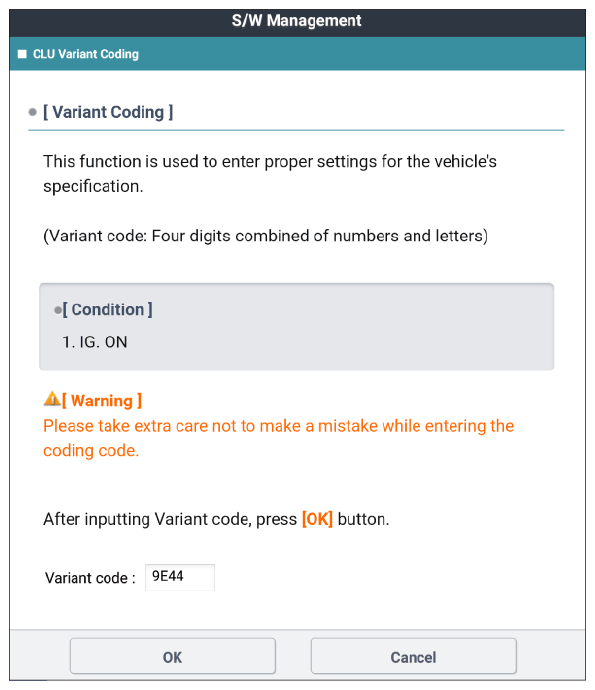

G13286116

Courtesy of KIA MOTORS AMERICA, INC.

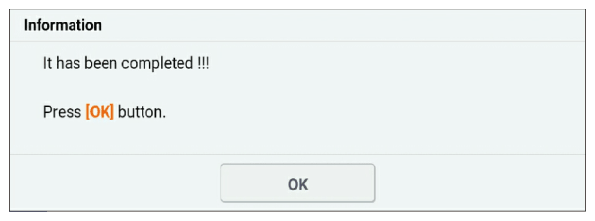

G13286117

Courtesy of KIA MOTORS AMERICA, INC.

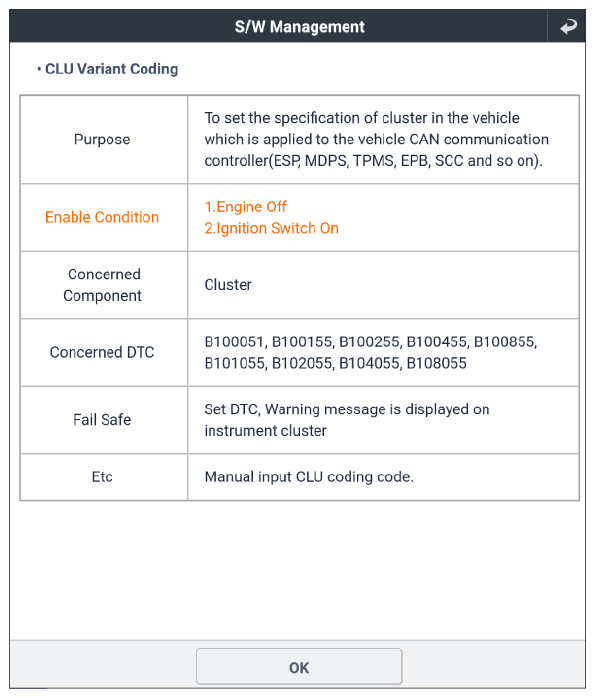

G13286118

Courtesy of KIA MOTORS AMERICA, INC.

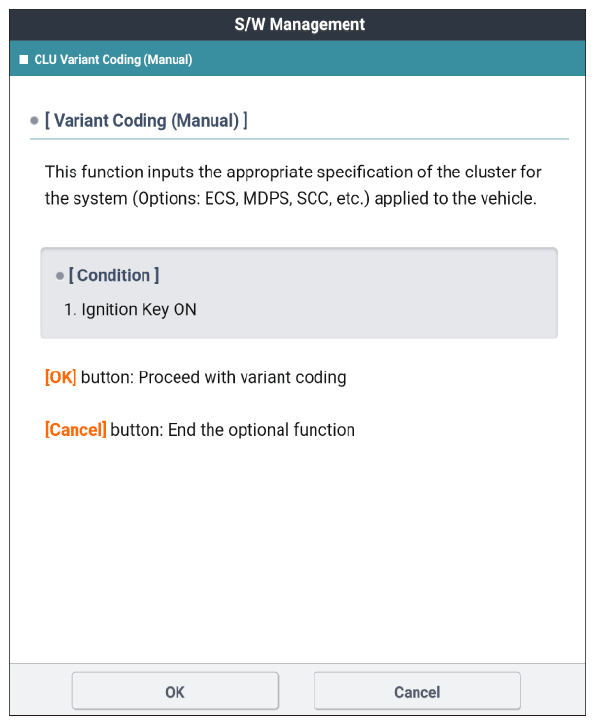

G13286119

Courtesy of KIA MOTORS AMERICA, INC.

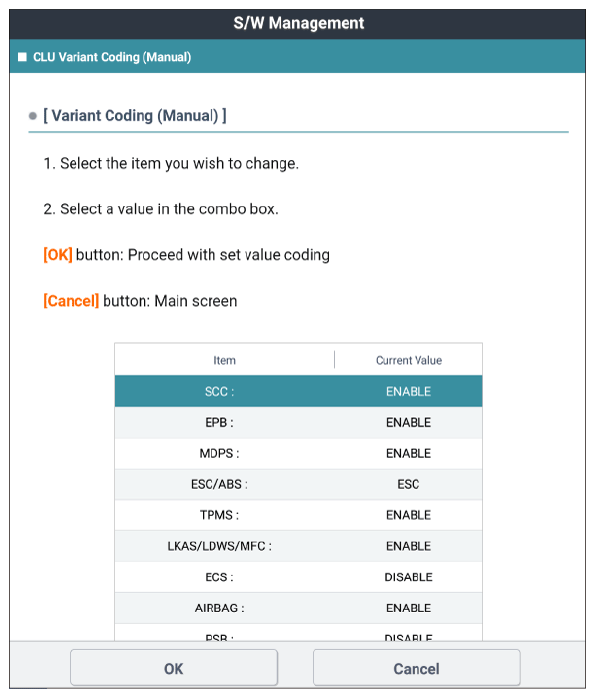

G13286120

Courtesy of KIA MOTORS AMERICA, INC.

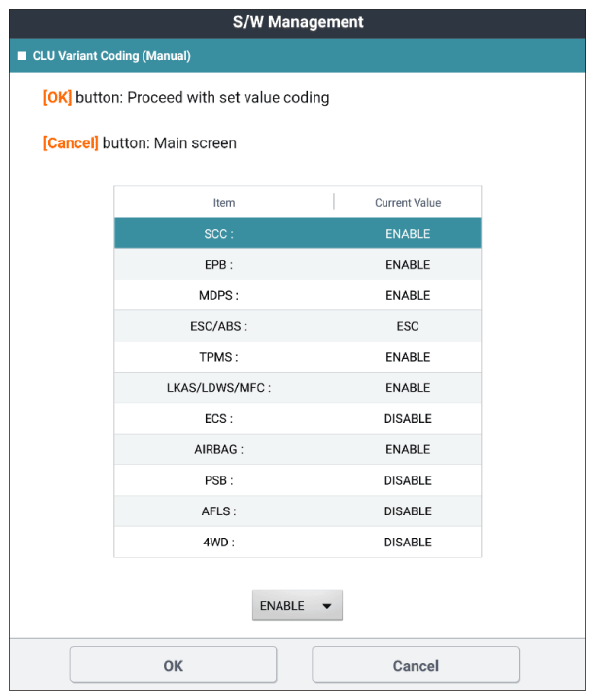

G13286121

Courtesy of KIA MOTORS AMERICA, INC.

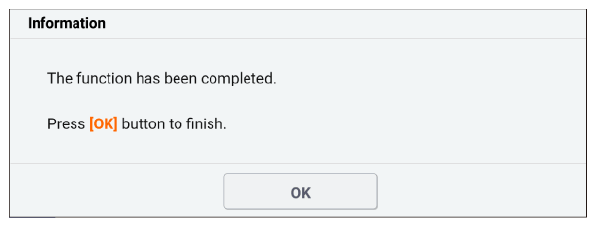

G13286122

Courtesy of KIA MOTORS AMERICA, INC.
