Circuit Diagram
>>
Safety Window Motor
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

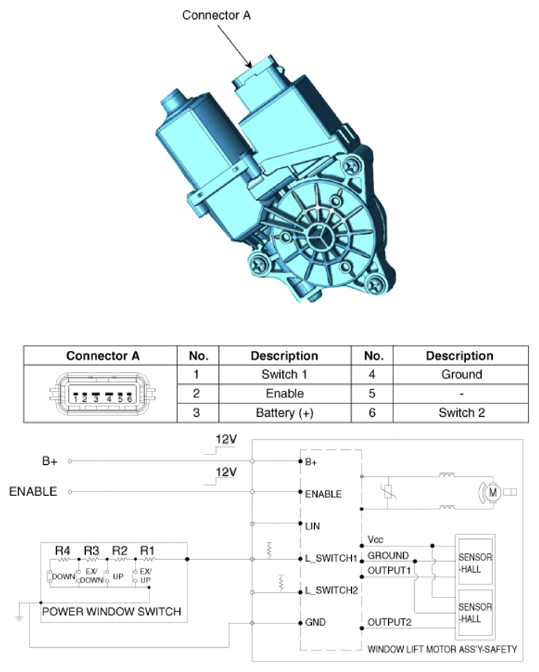

Safety Window Motor
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
