Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

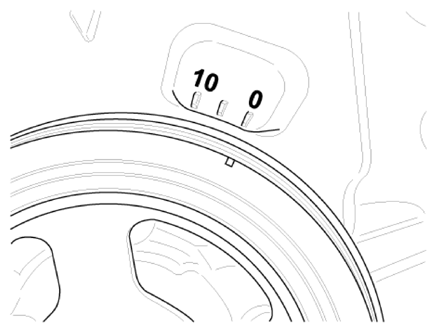

Turn the crankshaft pulley clockwise, and align its groove with the timing mark of the timing chain cover.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")

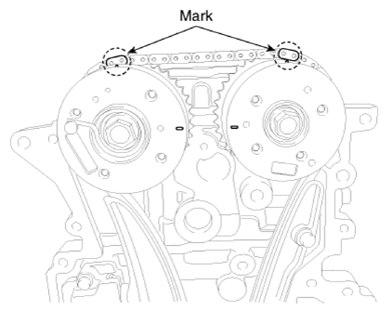

Align the timing marks of the CVVT sprockets with the upper surface of the cylinder head to make No. 1 cylinder be positioned at TDC.

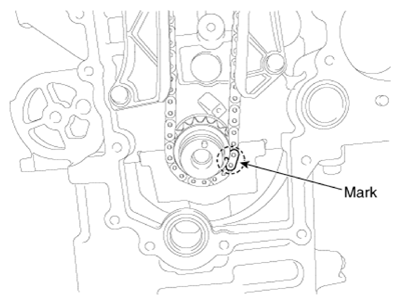

NOTE: Check the dowel pin of the crankshaft for facing upside of the engine at this moment.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

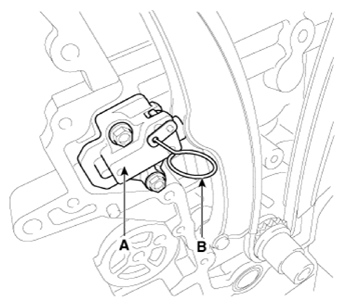

Remove the timing chain auto tensioner (A).

Courtesy of KIA MOTORS AMERICA, INC.

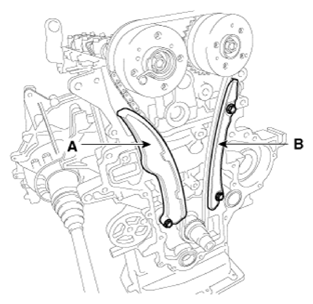

Remove the timing chain tensioner arm (A) and guide (B).

Courtesy of KIA MOTORS AMERICA, INC.

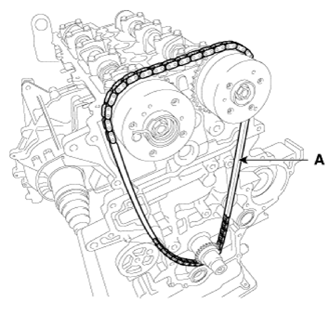

Remove the timing chain (A).

Courtesy of KIA MOTORS AMERICA, INC.
