Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

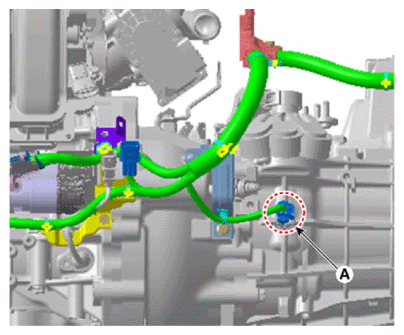

  2. Disconnect the neutral position switch connector (A).
    G13284018Courtesy of KIA MOTORS AMERICA, INC.
  3. Check the continuity between power terminal and signal terminal.
    G13284019Courtesy of KIA MOTORS AMERICA, INC.
