Removal And Installation

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

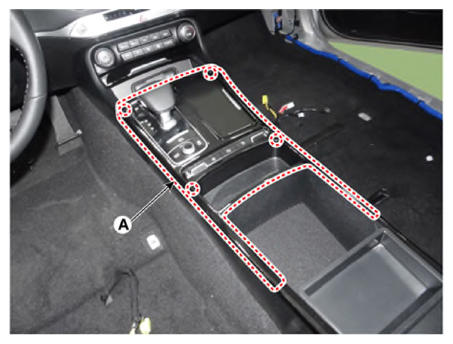

  2. Using the remover, remove the console upper cover (A).
    G13425106Courtesy of KIA MOTORS AMERICA, INC.

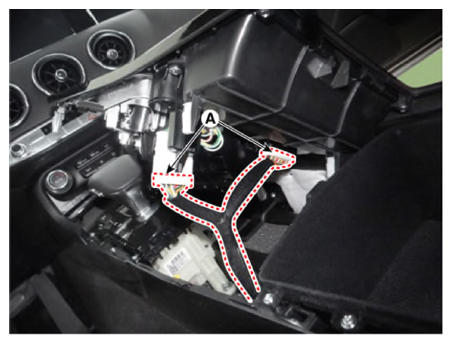

  3. Disconnect the connector (A) from the console upper complete.
    G13425107Courtesy of KIA MOTORS AMERICA, INC.

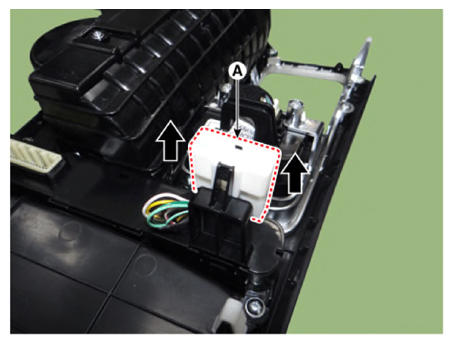

  4. Disconnect the connector (A) from the upper console.
    G13425108Courtesy of KIA MOTORS AMERICA, INC.

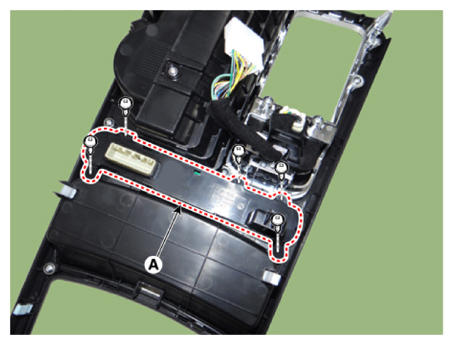

  5. Loosen the screw and then remove the console floor switch complete (A).
    G13425109Courtesy of KIA MOTORS AMERICA, INC.

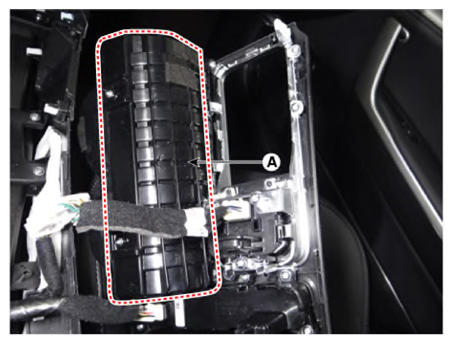

  6. Remove the cup holder (A).
    G13425110Courtesy of KIA MOTORS AMERICA, INC.

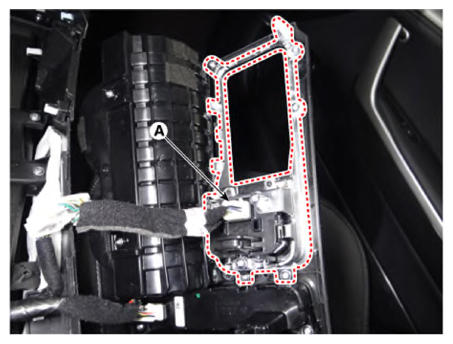

  7. Loosen the screw and then remove the ESC switch (A).
    G13425111Courtesy of KIA MOTORS AMERICA, INC.

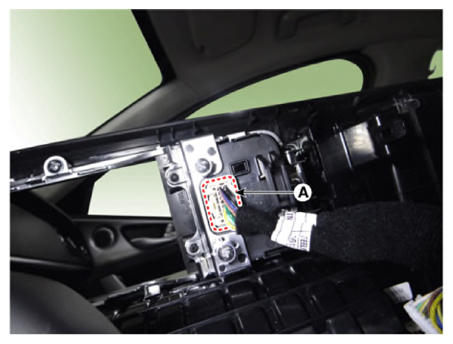

  8. Disconnect the ESC connector (A) from the upper console.
    G13425112Courtesy of KIA MOTORS AMERICA, INC.

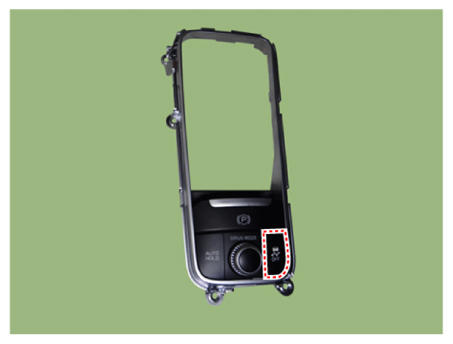

    G13425113Courtesy of KIA MOTORS AMERICA, INC.
  9. Install in the reverse order of removal.
