Repair Procedures: Removal

[200W]

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
2. Remove the glove box housing.

   (Refer to Body (Interior and Exterior) - "GLOVE BOX HOUSING ")

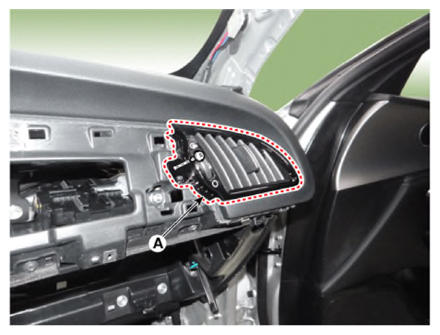

3. Remove the [RH] side air bant duct (A) after loosening the mounting screw.

   Courtesy of KIA MOTORS AMERICA, INC.

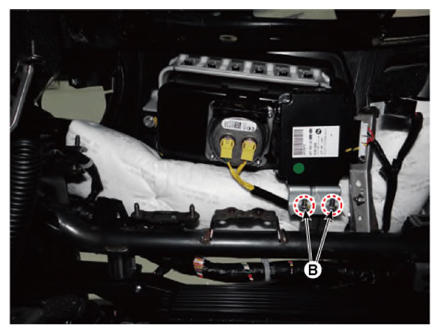

4. Remove the DC/DC converter after loosening the mounting bolt (A) and nut (B).

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   [400W]

1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

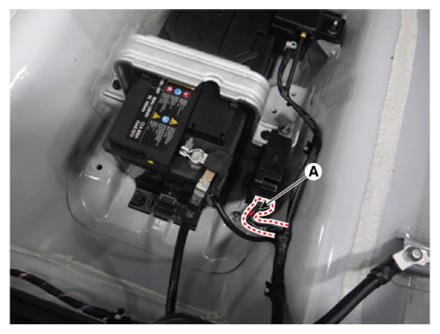

2. Disconnect the DC/DC converter connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

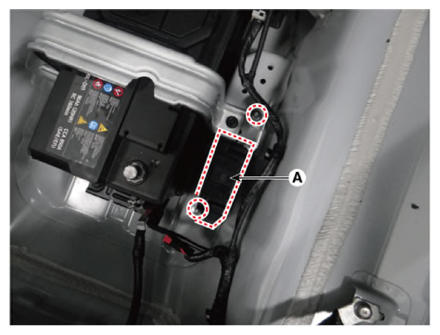

3. Remove the DC/DC converter (A) after loosening the mounting nuts.

   Courtesy of KIA MOTORS AMERICA, INC.
