Repair Procedures: Removal

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.

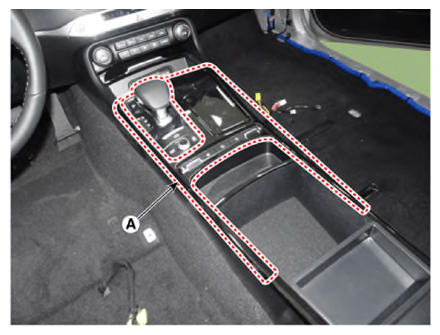

Remvoe the console upper complete (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

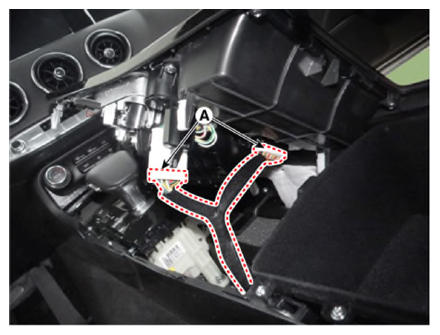

Disconnect the connectors (A) from the console upper complete.

Courtesy of KIA MOTORS AMERICA, INC.

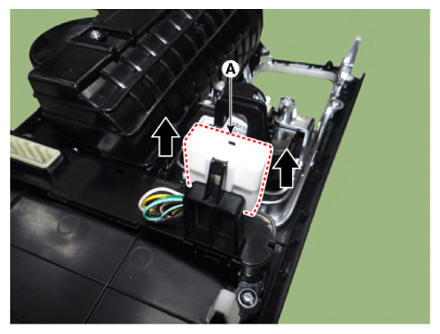

Remove the connector (A) from the console floor switch complete.

Courtesy of KIA MOTORS AMERICA, INC.

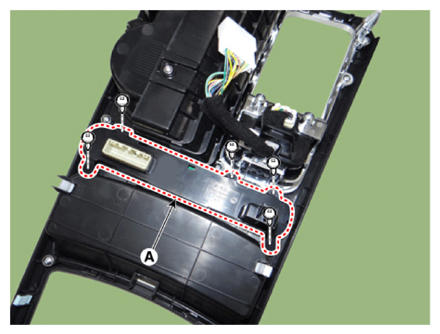

Remove the console floor switch complete (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
