Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

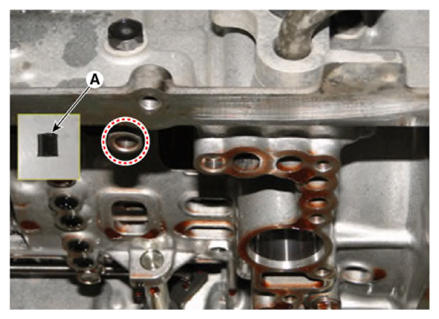

Check if the pipe (A) is inserted on the marked area before mounting the valve body assembly.

Courtesy of KIA MOTORS AMERICA, INC.

Refill the automatic transmission with fluid.
(Refer to Hydraulic System - "FLUID ")
