Repair Procedures: Installation

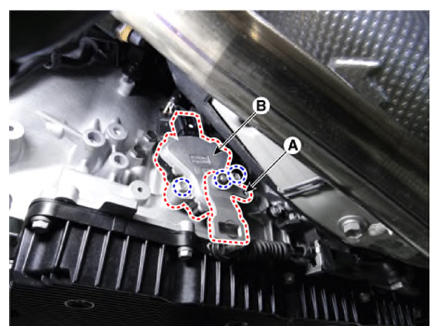

Install the inhibitor switch (B) and manual control lever (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Lightly tighten the bolts and nut so that necessary adjustments can be made.
Install the SST (09480-D2100).

Courtesy of KIA MOTORS AMERICA, INC.

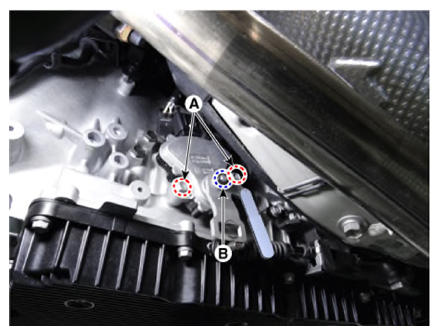

Tighten the inhibitor switch mounting bolts (A) and manual control lever mounting nut (B).
Tightening torque:
1. 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
2. 13.7 - 17.7 N.m (1.4 - 1.8 kgf.m, 10.1 - 13.0 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.

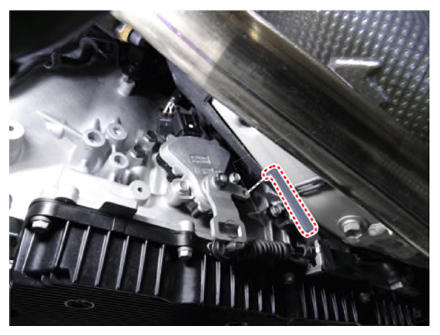

Remove the SST (09480-D2100).

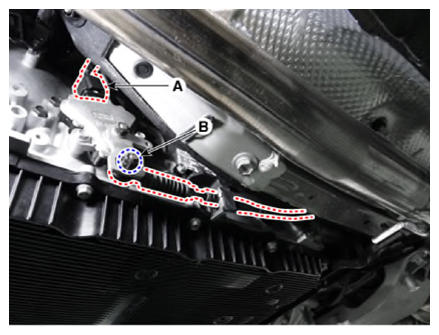

Connect the inhibitor switch connector (A) and tighten shift cable mounting nut (B).
