Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Disconnect the negative (-) battery terminal.

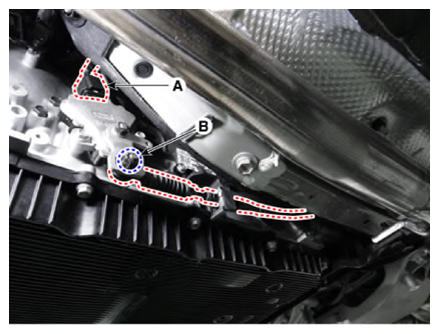

  3. Inhibitor switch connector (A) and loosen the nut (B).
    G13423817Courtesy of KIA MOTORS AMERICA, INC.

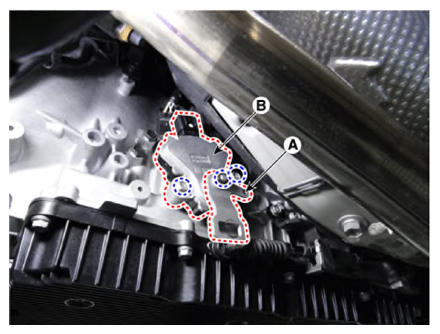

  4. Remove the manual control lever (A) and then remove the inhibitor switch (B).
    G13423818Courtesy of KIA MOTORS AMERICA, INC.
