Repair Procedures: Removal

  1. Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

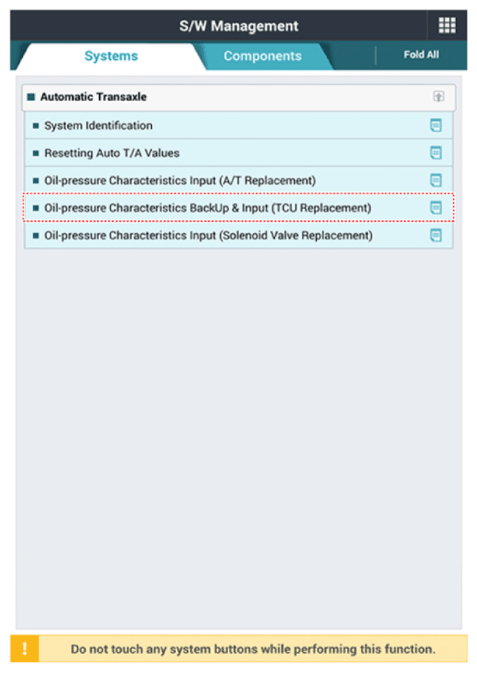

    1. Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".
      G13423760Courtesy of KIA MOTORS AMERICA, INC.

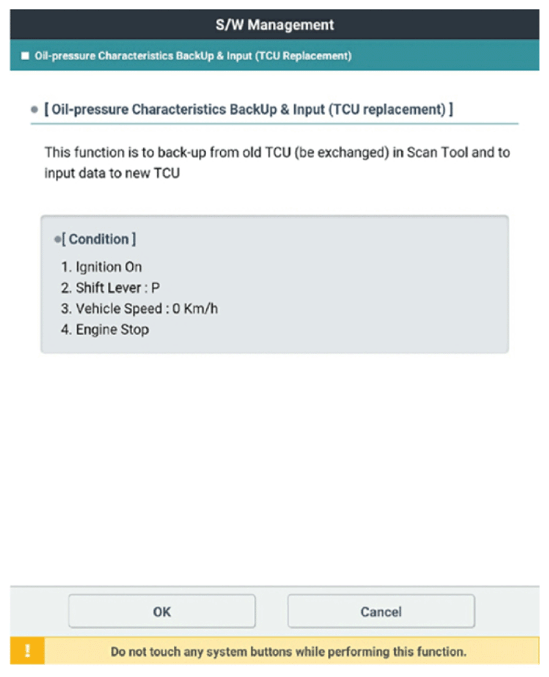

    2. Check the condition and then click the "OK".
      G13423761Courtesy of KIA MOTORS AMERICA, INC.

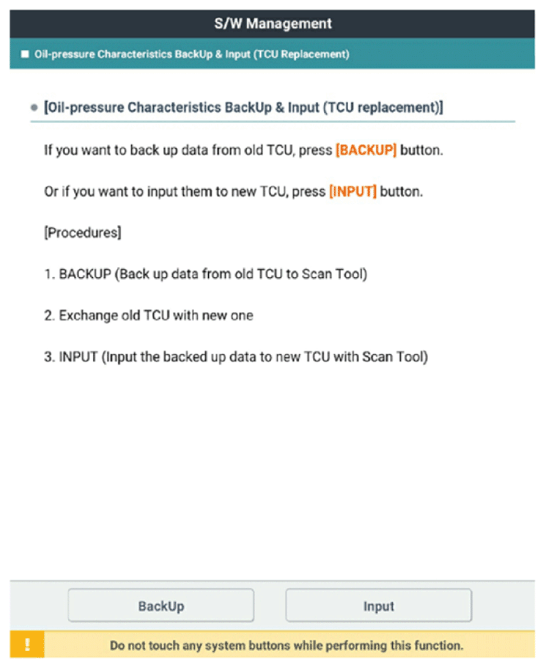

    3. Click the "BackUp".
    G13423762Courtesy of KIA MOTORS AMERICA, INC.

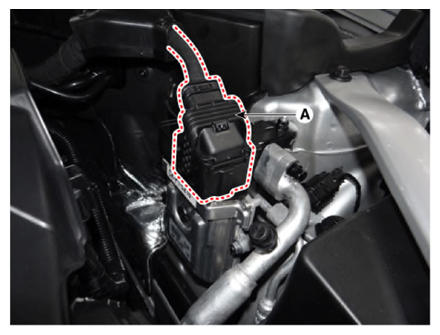

  2. Disconnect the TCM connector (A).
    G13423763Courtesy of KIA MOTORS AMERICA, INC.

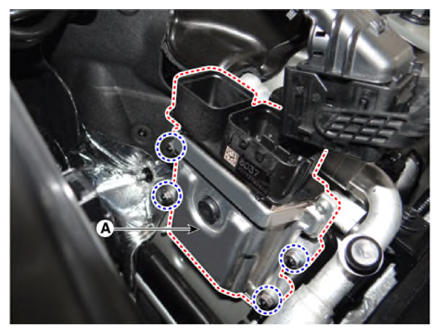

  3. Remove the TCM (A) after loosening the nuts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13423764Courtesy of KIA MOTORS AMERICA, INC.
