Repair procedures: Removal

  1. Remove the ignition coil.

    (Refer to Ignition System - "IGNITION COIL ")

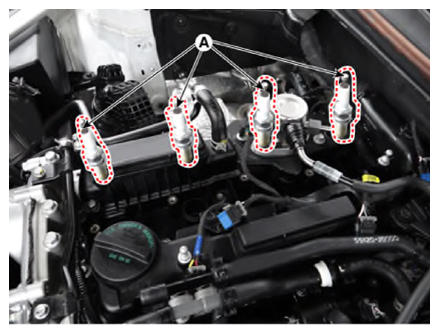

  2. Using a spark plug wrench, remove the spark plug (A).
    G13423246Courtesy of KIA MOTORS AMERICA, INC.
