Repair Procedures: Removal

  1. Turn the ignition switch OFF.

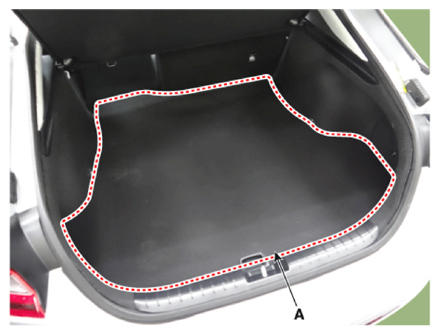

  2. Remove the luggage covering (A).
    G13428260Courtesy of KIA MOTORS AMERICA, INC.

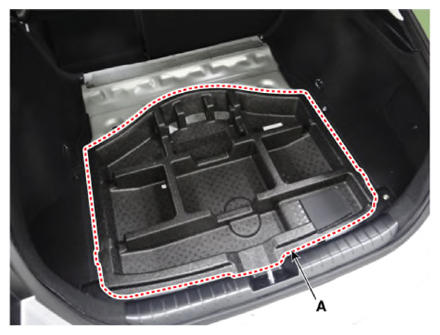

  3. Remove the luggage center tray (A).
    G13428261Courtesy of KIA MOTORS AMERICA, INC.

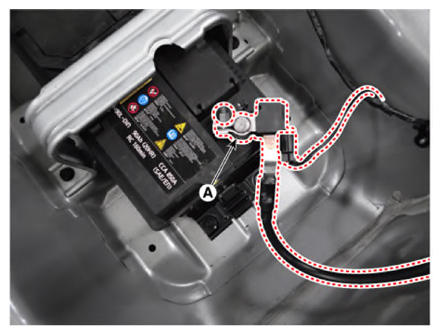

  4. Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).
    G13428262Courtesy of KIA MOTORS AMERICA, INC.

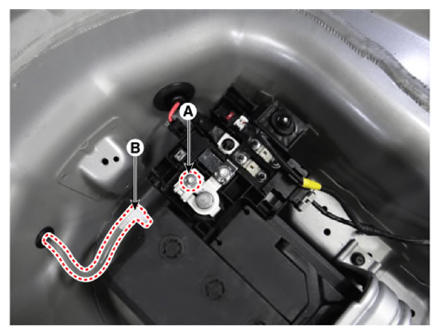

  5. Disconnect the battery positive (+) terminal (A).
  6. Disconnect the vent hose (B).
    G13428263Courtesy of KIA MOTORS AMERICA, INC.

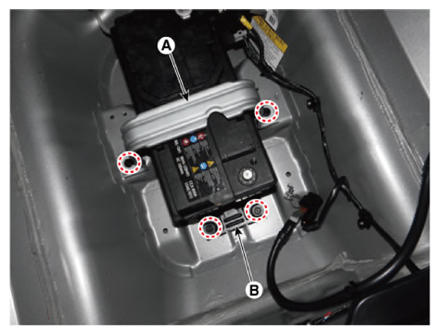

  7. Remove the mounting band (A).
  8. Remove the mounting bracket (B) and then remove the battery.
    G13428264Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the battery.
